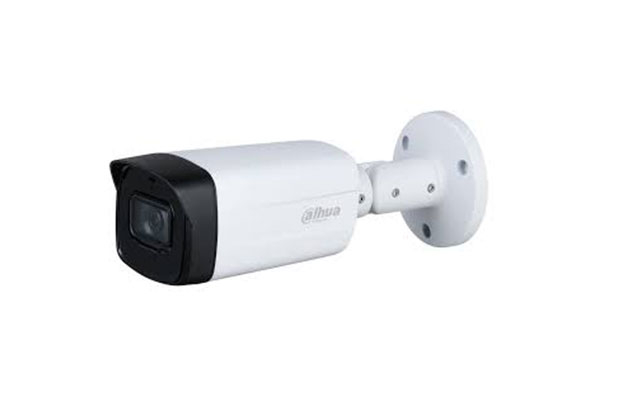

Dahua HAC-HFW1500TH-I4-A 5MP Starlight HDCVI IR Bullet Camera

~~$ 40.00~~ $ 35.00

Part Number: HAC-HFW1500TH-I4-A
Max 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
3.6 mm fixed lens (6 mm optional)
Max. IR length 40 m, Smart IR
IP67, DC12V
Warranty: 1-Year on part.

Order Now

Specification

Part Number: HAC-HFW1500TH-I4-A
Camera
Image Sensor: 1/2.7 inch CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Pixel: 5MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
S/N Ratio: > 65 dB
Min. Illumination: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance: 40 m (131.2 ft)
Illumination On/Off Control: Auto; manual
Illuminator Number: 1
Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–180°; Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 3.6 mm; 6 mm
Max. Aperture: F1.6
Field of View: 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
Field of View: 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical)
Iris Type: Fixed iris
Close Focus Distance: 3.6 mm: 1.6 m (5.2 ft), 6 mm: 3.1 m (10.2 ft)
DORI Distance Lens:3.6 mm, 6 mm
DORI Distance Detect: 80 m (262.5 ft), 120 m (393.7 ft)
DORI Distance Observe: 32 m (105.0 ft), 60.2 m (197.5 ft)
DORI Distance Recognize: 16 m (52.5 ft), 24 m (78.7 ft)
DORI Distance Identify: 8 m (26.2 ft), 12 m (39.4 m)
Video
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps
TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps
CVBS: PAL: 960H; NTSC: 960H
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night: Auto switch by ICR
BLC: BLC/HLC/DWDR
WDR: DWDR
White Balance: Auto; manual
Gain Control: Auto; manual
Noise Reduction: 2D NR
Smart IR: Yes
Mirror: Off/On
Privacy Masking: Off/On (8 areas, rectangle)
Certifications
Certifications: CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply: 12V ±30% DC
Power Consumption: Max 3.2W (12V DC, IR on)
Environment
Operating Temperature: –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature: –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Protection Grade: IP67
Structure
Casing: Mental front cover+plastic main body+mental bracket
Camera Dimensions: 240.7 mm × 90.7 mm × 90.4 mm ( 9.48" × 3.57" × 3.56" )
Net Weight: 0.41 kg (0.90 lb)
Gross Weight: 0.64 kg (1.41 lb).
