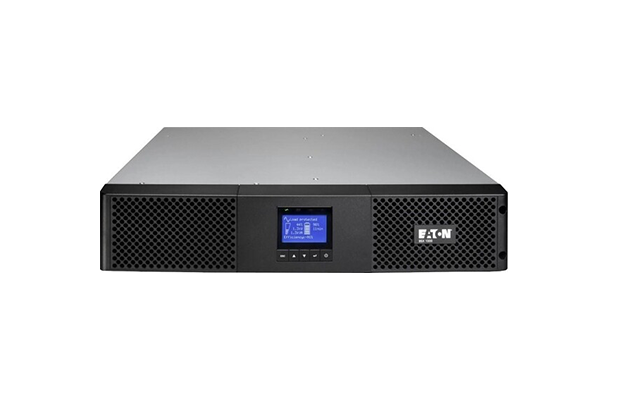

Eaton UPS 9SX 2000IR 230V, Rackmount 2U (9SX2000IR)

~~$ 960.00~~ $ 950.00

Part Number: Eaton 9SX2000IR
Product Name: Eaton 9SX UPS
Rating (VA / W): 2000VA/1800 W
VA rating: 2000VA
Form factor: Tower
Input voltage range: 190-276 Vac
Frequency: 50 / 60 Hz
Output voltage: 230V
Input frequency range: 40-70 Hz
Product Weight: 26.5 kg
Receptacle: (8) C13
Warranty: 3year on electric (2year on battery).

Order Now

Specification

Part Number: Eaton 9SX2000IR
GENERAL SPECIFICATIONS
Product Name: Eaton 9SX UPS
UPC: 743172090973
Product Length/Depth: 438 mm
Product Height: 86.5 mm
Product Width: 438 mm
Product Weight: 26.5 kg
BATTERY
Battery type: Sealed, lead-acid
Runtime graph: View runtime graph
Battery replacement: Hot-swappable internal batteries and extended battery modules (EBMs)
Battery quantity: 6
Battery management:
- ABM & Temperature compensated charging method (user selectable)
- Automatic battery test
- Deep discharge protection
- Automatic recognition of external battery units
Battery rating: 12 V / 9 Ah
Extended battery capability: Yes
ELECTRICAL OUTPUT
Receptacle: (8) C13
Voltage: 230V
Wattage: 1800 W
Output power factor: 0.9
Output voltage range: 200/208/220/230/240 V +/- 2%
Output waveform: Sine wave
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max: 3
Feed type: 1
Topology: Online/Double-conversion
VA rating: 2000 VA
ELECTRICAL INPUT
Input connection: C14
Input nominal voltage: 230V default (200/208/220/230/240/250V)
Nominal frequency: 50/60 Hz
Input power factor: >.99
Input voltage range: 190-276 Vac without derating (up to 120-276 Vac with derating)
Input frequency range: 40-70 Hz

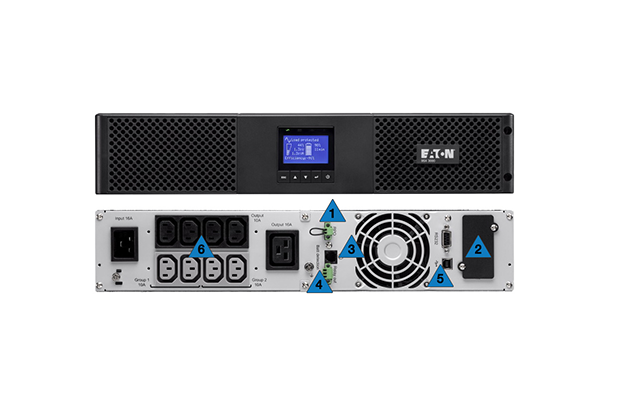

COMMUNICATIONS
Includes network card: No
Communication:
- USB port (HID compliant)
- Serial port (RS232)
- Mini-terminal block for remote power off
- Mini-terminal block for output relay
- Dry contacts (2 outputs, 1 input, optocoupler, DB9)
Ethernet interface: No
User interface: Multilingual graphical LCD display
Potential free switch contact: Yes
Expansion slots: One slot for optional communication card
Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface: Other
ENVIRONMENTAL
Altitude: 3000 m
Noise level: <45 dB at 1 meter
Temperature range: 0° to 40°C (32° to 104°F)
Relative humidity: 0-96% non-condensing
ADDITIONAL SPECIFICATIONS
Construction type: 482.6 mm (19 inch) device
Package contents:
- UPS
- (2) IEC-IEC output cables
- USB cable
- Serial cable
- (2) brackets for 19’ mounting
- (2) Rack-mounting kit
- Safety instructions
- Quickstart guide
Phase (output): 1
Internal bypass: Yes
Auto shutdown function: Yes
Color: Black
Efficiency: 92
Rack mounting kit: Yes
Phase (input): 1
Hot swap power: No
Warranty: 3year on electric (2year on battery).
