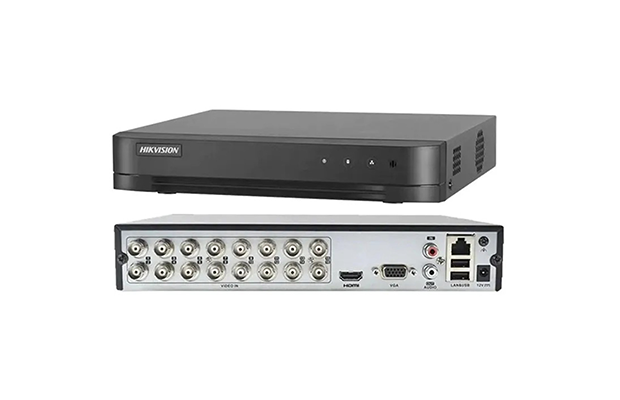

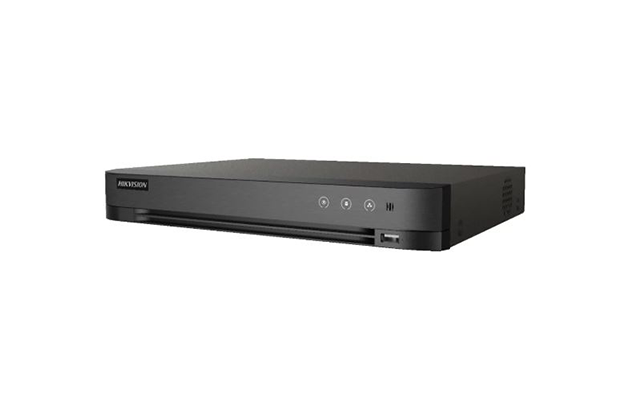

Hikvision DS-7216HGHI-M1 16-ch 720p 1U H.265 DVR

~~$ 100.00~~ $ 90.00

Part Number: DS-7216HGHI-M1(KH)
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 18-ch IP camera inputs (up to 5 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-7216HGHI-M1(KH)
Video and Audio
IP Video Input: 2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
AHD Input: 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
CVBS Input: PAL/NTSC
HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback: 16-ch
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
For 1080p and 720p stream access: CIF/QVGA@15fps
For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
Video Bitrate: 32 Kbps to 4 Mbps
Dual-stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Network
Remote Connection: 128
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA: 1, SATA interface
Capacity: Up to 10 TB capacity for each disk
USB Interface: Rear panel: 2 × USB 2.0
General
Power Supply: 12 VDC, 1.5 A
Consumption: ≤ 18 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight: ≤ 2.2 kg (4.9 lb)
Warranty: 1 Year on part.
