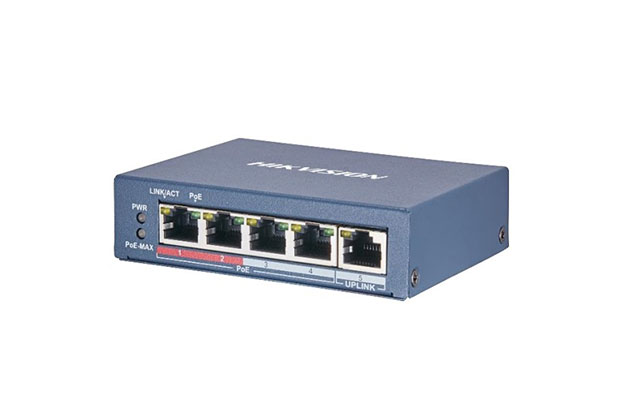

Hikvision DS-3E0105P-E/M(B) 4Port POE Switch

~~$ 44.00~~ $ 40.00

Part Number: DS-3E0105P-E/M(B)
Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Warranty: 1 Year on part

Order Now

Specification

Part Number: DS-3E0105P-E/M(B)
PoE Power Supply
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE Port: Ports 1 to 4
Max. Port Power: 30 W
PoE Power Pudget: 35 W
Max. Power Consumption: 38 W
Network Parameters
Port Number: 4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode: Store-and-forward switching
Working Mode: Standard mode (default); Extend mode
High Priority Ports: Ports 1 to 2
Ports For Long-Distance Transmission: Ports 1 to 4
MAC Address Table: 1 K
Switching Capacity: 1 Gbps
Packet Forwarding Rate: 0.744 Mpps
Internal Cache: 448 Kbits
General
Shell: Metal material, fan-free design
Gross Weight: 0.48 kg (1.06 lb)
Net Weight: 0.2 kg (0.4 lb)
Dimension (L × H × D): 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Power Supply: 48 VDC, 0.8 A
Power Consumption In Idle: 3 W
Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Warranty: 1 Year on part
