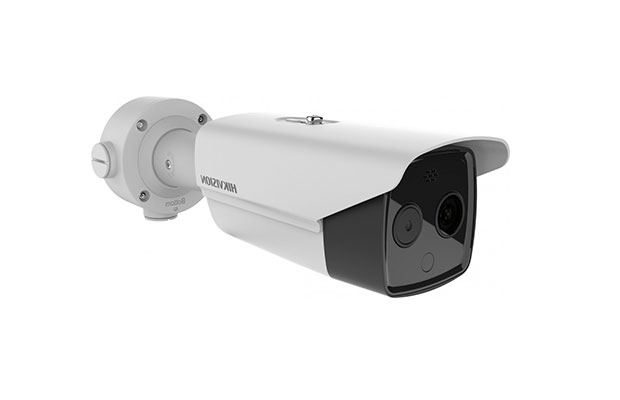

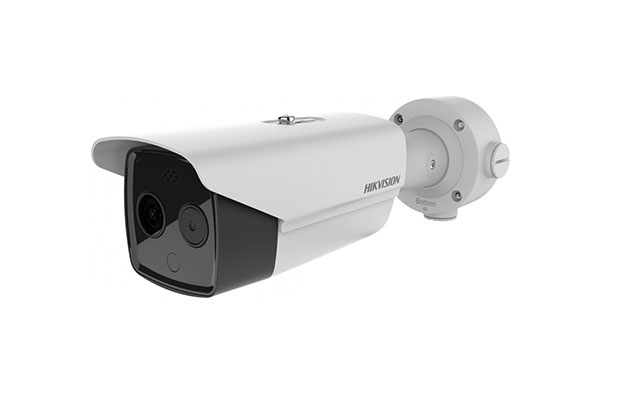

Hikvision DS-2TD2617-6/PA Thermal & Optical Bi-spectrum Network Bullet Camera

~~$ 746.00~~ $ 735.00

Part Number: DS-2TD2617-6/PA
Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit
Temperature exception alarm
Fire detection algorithm
160 × 120 (the resolution of output image is 320 × 240) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
Warranty: 1Years on part

Order Now

Specification

Part Number: DS-2TD2617-6/PA
Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 160 × 120
Pixel Interval: 17 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 40 mK (@ 25 °C,F#=1.1)
Focal Length: 6.2 mm
IFOV: 2.74 mrad
Field of View: 25.0° × 18.7° (H × V)
Min. Focusing Distance: 0.6 m
Aperture: F1.1
Digital Zoom: ×2, ×4, ×8
Optical Module
Image Sensor: 1/2.7" Progressive Scan CMOS
Resolution: 2688 × 1520, 4 MP
Min. Illumination: Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed: 1s to 1/100,000s
Focal Length: 8 mm
Field of View: 39.42° × 22.14°(H × V)
Aperture (Range): F1.7
WDR: 120 dB
Image Effect
Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
Picture in Picture: Display partial image of thermal channel on the full screen of optical channel
Target Coloration: Yes. Supported in white hot and black hot mode.
Illuminator
IR Distance: Up to 40 m
IR Intensity and Angle: Automatically adjusted
Audible and Visual Alarm
White Light Range: Up to 40 m
Visual Alarm: Yes. White light used as the visual alarm, flashing frequency adjustable
Audio alarm: Yes. 6 audio alarms are supported to cover all kinds of alarm.
Smart Function
VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy: ± 8 °C (±14.4 °F)
Fire Detection: Dynamic fire detection, up to 10 fire points detectable.
Video and Audio
Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream
Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:
60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
API: ISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live View: Up to 20 channels
User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client: iVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
Interface
Alarm Input: 2-ch inputs (0-5 VDC)
Alarm Output: 2-ch relay outputs, alarm response actions configurable
Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output: Linear Level; Impedance: 600 Ω
Communication Interface:
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
General
Web Client Language: 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power: PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.65A
Power Consumption: PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W
12 VDC ± 20%: 0.65 A, max. 7.5 W
Work Temperature/Humidity: From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension: 358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
Weight: Approx. 1.76 kg (3.88 lb)
Detection Range Table/Wide Range Coverage
Detection Range for Humans (1.8×0.5m): 182 m
Detection Range for Vehicles (4.0×1.4m): 559 m
Recognition Range for Humans (1.8×0.5m): 46 m
Recognition Range for Vehicles (4.0×1.4m): 140 m
Identification Range for Humans (1.8×0.5m): 23 m
Identification Range for Vehicles (4.0×1.4m): 70 m
Detection Range Table/Smart Function Range
VCA Range for Humans: 30 m
VCA Range for Vehicles: 90 m
Temperature Measurement Range for Object (2m×2m): 132 m
Temperature Measurement Range for Object (1m×1m): 66 m
Fire Detection Range for Object (2m×2m): 360 m
Fire Detection Range for Object (1m×1m): 180 m
Weight: Approx. 1.76 kg (3.88 lb)
