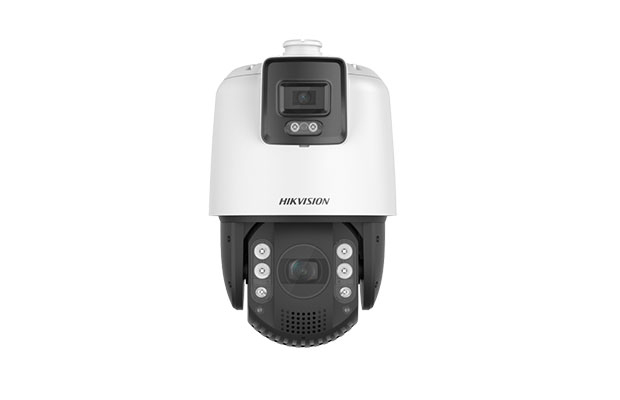

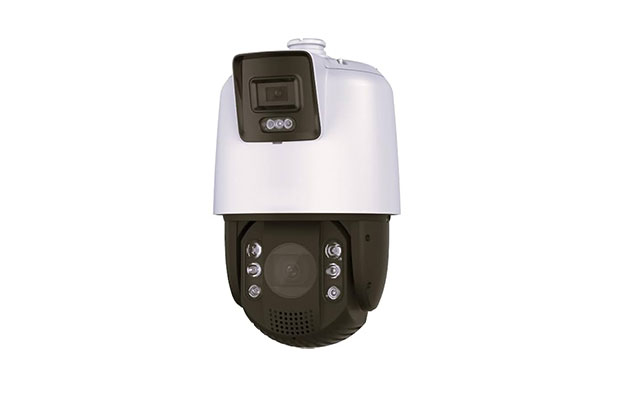

Hikvision DS-2SE7C432MW-AEB(14F1)(P3)

~~$ 595.00~~ $ 585.00

Part Number: DS-2SE7C432MW-AEB(14F1)(P3)
Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Secures an expansive area with 32× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
Expansive night view with up to 200 m IR distance
Supports 24 VAC & Hi-PoE
Active strobe light and audio alarm to warn intruders off
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-2SE7C432MW-AEB(14F1)(P3)
Camera
Image Sensor: [Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS
Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed: 1 s to 1/30,000 s
Day & Night": ICR
Zoom: [PTZ channel] 32 × optical, 16 × digital
Slow Shutter: yes
HLC: yes
3D DNR: yes
Lens
Focal Length: [Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
FOV: [Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;
FOV: [PTZ channel]: Horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3° (wide-tele)
Focus: semi-auto||manual||auto
Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.5
Zoom Speed: [PTZ channel]: approx. 5.6 s
Illuminator
Supplement Light Type: [Bullet channel] white light, [PTZ channel] IR
Supplement Light Range: [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
Smart Supplement Light: Yes
PTZ
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90° (auto flip)
Pan Speed pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan: yes
Presets: 300
Preset Freezing: yes
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans
Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioning
yes; PTZ Status Display
yes: Scheduled Task
preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memory: yes
API: Open-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
User/Host: 32
Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network Storage: NAS (NFS，SMB/ CIFS), ANR
Client: iVMS-4200||Hik-Connect
Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Image Parameters Switch: Yes
Image Settings: saturation||brightness||contrast||sharpness
Day/Night Switch: day, night, auto, scheduled-switch
Wide Dynamic Range (WDR): 120 dB WDR
SNR: ＞52dB
Defog: yes
Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional Focus: yes
Regional Exposure: yes
Interface
Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
Audio: 1 output (line out), line level, output impedance: 600 Ω
Alarm: 2 input(s), 1 output(s)
Reset: yes
Event
Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart TrackingL: [PTZ channel] yes
Smart Linkage: Manual tracking, auto tracking, tracking takeover, track in turn
Deep Learning Function
Face Capture: [Bullet channel] no,[PTZ channel] yes
General
Power: 24 VAC, Hi-PoE
Dimension: Ø 220 mm × 382.1 mm (Ø 8.66" × 15.04")
Weight: Approx. 6 kg (13.23 lb.)
Material: ADC12
Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
General Function: mirror, password protection, watermark, IP address filter
Demist: Demist by heating the glass
Power Consumption and Current: Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
Approval
Protection: IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
