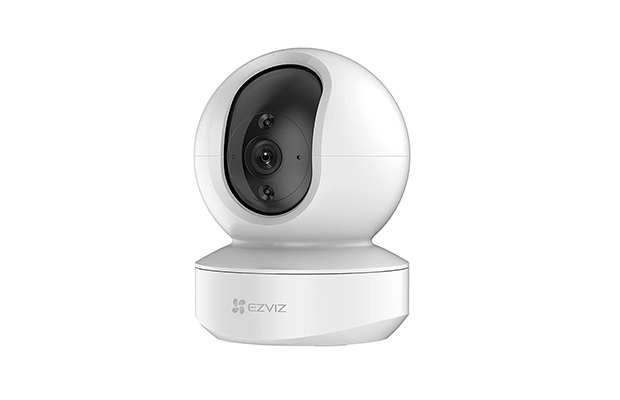

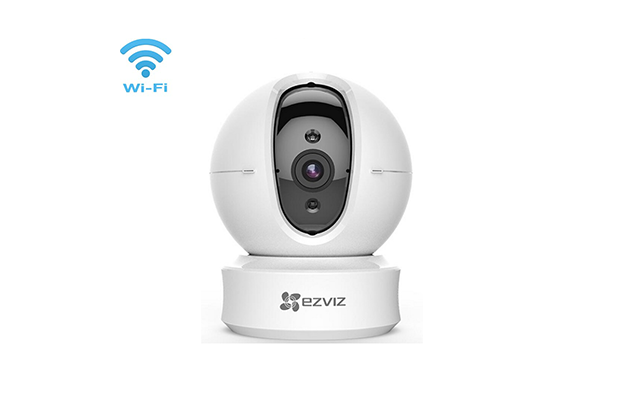

EZVIZ TY1 Pro 2K (3MP) Smart Wi-Fi Pan & Tilt Camera

~~$ 40.00~~ $ 35.00

Part Number: CS-TY1-C0-8B4WF
Image sensor: F2.2@1/3" Progressive Scan CMOS
Resolution: 2K (4MP)
Resolution: 2560 × 1440
Warranty: 1 year on part
*** Not included MicroSD card

Order Now

Specification

Part Number: CS-TY1-C0-8B4WF
Camera
Image sensor: F2.2@1/3" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD, Full HD, HD, Standard.Adaptive bit rate.
Max. Resolution: 2560 × 1440
Frame Rate: Max. 20 fps; Self-Adaptive during network transmission
Network
Smart Alarm: Human Motion detection
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Interface
Storage: Micro SD card slot (Max. 256G)
Power: Micro USB
Wired Network: RJ45 × 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
Output Power(EIRP): 19 dBm
Antenna Gain: 1.9 dBi
General
Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply: DC 5V/2A
Power Consumption: Max. 5W
IR Range: Max. 10 m (32.81 ft)
Dimensions: 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch)
Packaging Dimensions: 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
Bare Weight: 259g (9.14oz)
In the box:
- TY1 Pro 3MP Camera
- Base
- Screw Kit
- Power Cable 3m (9.8 ft.)
- Drill Template
- Power Adapter
- Quick Start Guide
- Regulatory Information
Warranty: 1 year on part
*** Not included MicroSD card.

EZVIZ TY1 Pro 2K (3MP) Smart Wi-Fi Pan & Tilt Camera

Specification
