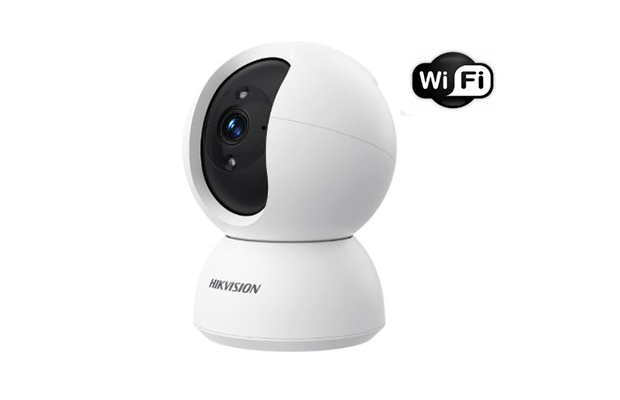

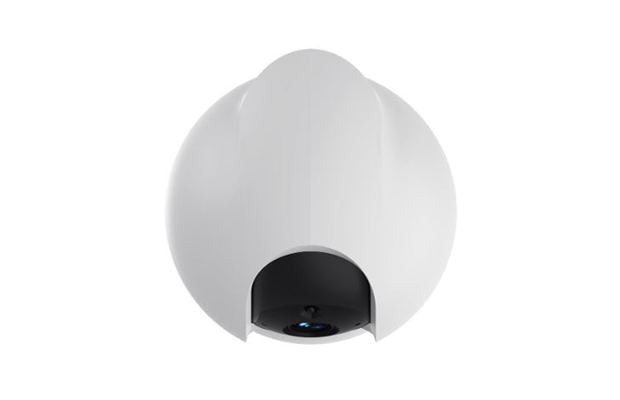

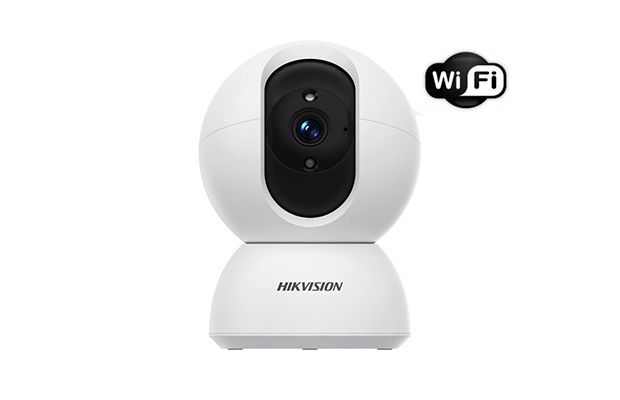

Hikvision DS-2CV2Q21G1-IDW 2MP Indoor Fixed Wi-Fi Camera

~~$ 44.00~~ $ 39.00

Part Number: DS-2CV2Q21G1-IDW
Support Wi-Fi connection
Support Network connection
Support Motion 2.0, human detection
Built-in microphone and speaker, support two-way audio
Mobile monitoring via mobile application
Support on-board storage, up to 512 GB
Clear imaging against strong back light due to DWDR technology
3D DNR technology delivers clean and sharp images
Warranty: 1-years on part.

Order Now

Specification

Part Number: DS-2CV2Q21G1-IDW(4MM)
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination: Color: 0.05 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV: 4 mm, horizontal FOV 75°, vertical FOV 45°, diagonal FOV 85°
Lens Mount: M12
Aperture: F2.0
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 10 m
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
Sub-Stream
50 Hz: 25 fps (768 × 432, 512 × 288)
60 Hz: 30 fps (768 × 432, 512 × 288)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264
Video Bit Rate: Up to 1 M bps
Frame Rate: Max.15 fps
Self-Adaptive during network transmission
Audio
Audio Compression: G.711/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Simultaneous Live View: Up to 4 channels
API: ONVIF (Profile S, Profile T, Profile G), SDK
User/Host: Administrator
Security: Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
Client: iVMS-4200, Hik-Connect, Hik-Partner-Pro
Wi-Fi
Encryption Mode: WPA-PSK/WPA2-PSK
Frequency Range: 2.412 GHz to 2.472 GHz
Channel Bandwidth: 20 MHz
Transfer Rate
11b: up to 54 Mbps,
11g: up to 54 Mbps,
11n: up to 150 Mbps
Wireless Range: Up to 50 m (The performance varies based on actual environment)
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software
Day/Night Switch: Auto
Wide Dynamic Range (WDR): Digital WDR
Privacy Mask: 4 programmable polygon privacy masks
Interface
Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone: Yes,1 built-in microphone
Built-in Speaker: Yes, 1 built-in speaker
Reset Key: Yes
Event
Basic Event: Motion detection (support alarm triggering by specified target type (human)), exception
General
Material: Plastic
Dimension: Ø80 mm × 122 mm (Ø3.14" × 4.8")
Package Dimension: 105 mm × 105 mm × 190 mm (4.1" × 4.1" × 7.5")
Weight: Approx. 216 g (0.48 lb.)
With Package Weight: Approx. 554 g (1.22 lb.)
Storage Conditions: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -10 °C to 45°C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,mirror
Power: 5 VDC ± 10%, 1 A, max. 5 W
Flashing Light: Red and Blue Light
Approval
RF: CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
Safety: CE-LVD: EN 62368-1: 2014/A11: 2017
Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
Warranty: 1-year on part.
