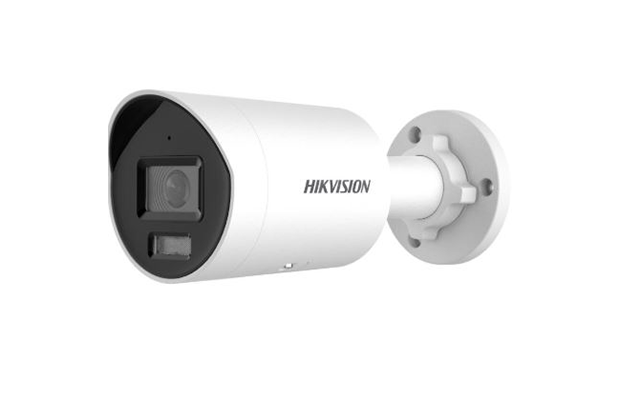

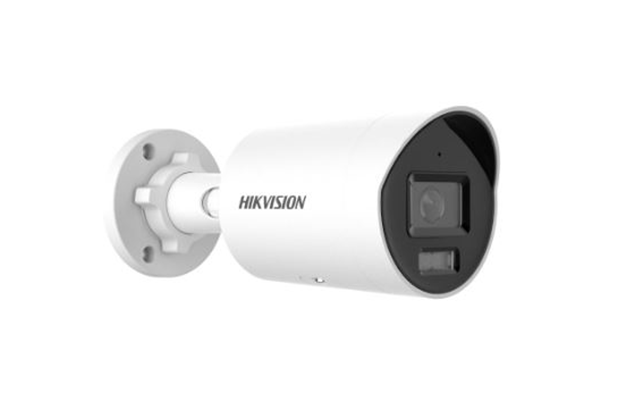

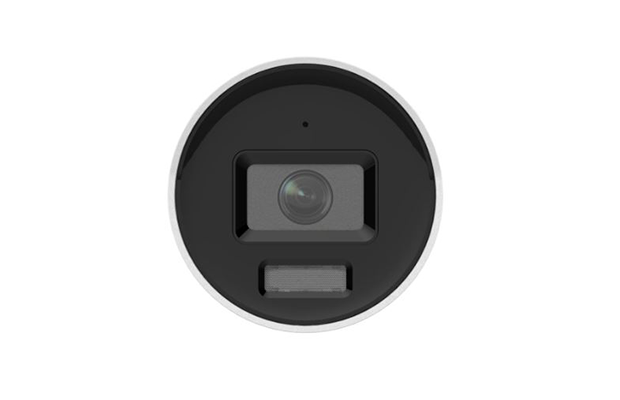

Hikvision DS-2CD2067G2-LU 6MP ColorVu Fixed Mini Bullet Network Camera

~~$ 130.00~~ $ 125.00

Part Number: DS-2CD2067G2-LU
High quality imaging with 6 MP resolution
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-2CD2067G2-LU
Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: 24/7 color imaging
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV: 2.8mm, Horizontal FOV: 109°, Vertical FOV: 59°, Diagonal FOV: 130°
Focal Length & FOV: 4 mm, Horizontal FOV: 93°, Vertical FOV: 49°, Diagonal FOV: 111°
Focal Length & FOV: 6 mm, Horizontal FOV: 57°, Vertical FOV: 30°, Diagonal FOV: 67°
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 3.1 m to ∞ ; 4 mm: 3.5 m to ∞; 6 mm: 8.2 m to ∞
DORI
DORI: 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m
DORI: 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
DORI: 6 mm, D: 168 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
Supplement Light Type: White Light
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
Video
Main Stream
50 Hz:
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3200 × 1800)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
Audio
Audio Type: -U: Mono sound
Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch: Yes
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 4 regions of privacy mask
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: -U: Yes
Reset Key: Yes
Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,supplement light
Deep Learning Function
Face Capture: Yes
General
Power: 12 VDC ± 25%, 0.5 A, max. 6.0 W,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Material: Metal
Dimension: Ø74.4 mm × 179.2 mm (Ø2.9 × 7.1\")"
Package Dimension: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Weight: Approx. 520 g (1.1 lb.)
With Package Weight: Approx. 760 g (1.7 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams
Approval
EMC FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Warranty: 1 Year on part.
