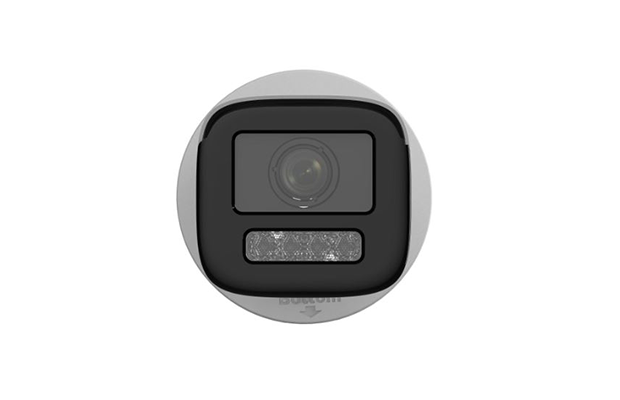

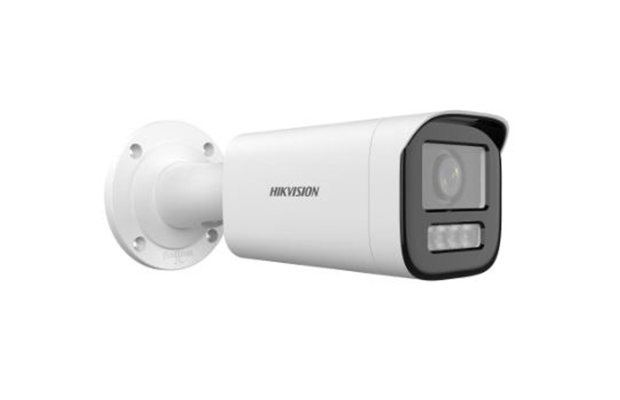

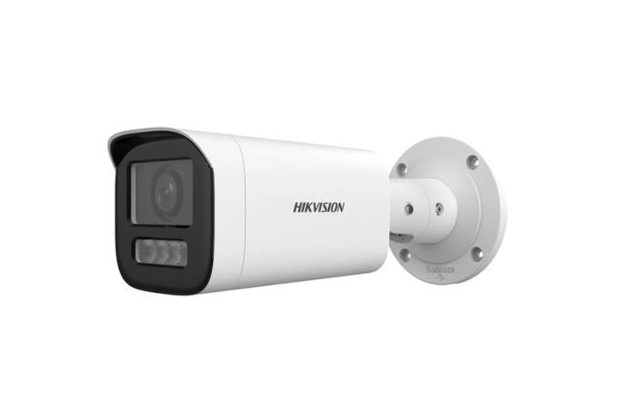

Hikvision DS-2CD1663G2-LIZU 6MP Dual Light MD 2.0 Varifocal Bullet Network Camera

~~$ 110.00~~ $ 105.00

Part Number: DS-2CD1663G2-LIZU
High quality imaging with 6 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 512 GB SD card slot for storage
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR technology
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-2CD1663G2-LIZU
Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°
Lens
Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°
Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.6
DORI
DORI D: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m
Illuminator
Supplement Light Type: IR,White Light
Supplement Light Range: Up to 50 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream
50 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream
Audio
Audio Type: Mono sound
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC:
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Network
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 4 programmable polygon privacy masks
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes
Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
Audio: -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key: Yes
Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S),audible warning
General
Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12 W
Material: Metal & Plastic
Dimension: Ø105 mm × 252 mm (Ø4.1 × 9.9\")"
Package Dimension: 315 mm × 137 mm × 141 mm (5.5" × 5.5" × 6.1")
Weight: Approx. 750 g (1.7 lb.)
With Package Weight: Approx. 1075 g (2.4 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat, anti-banding, mirror, password protection,password reset by email
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Warranty: 1 Year on part.
