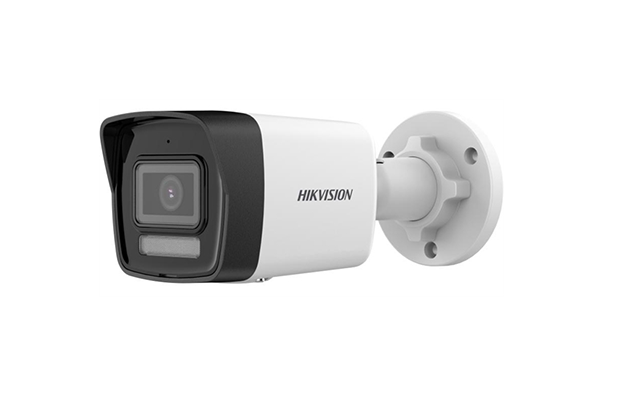

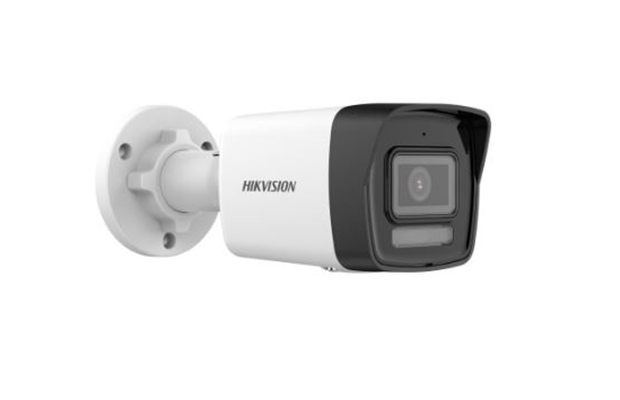

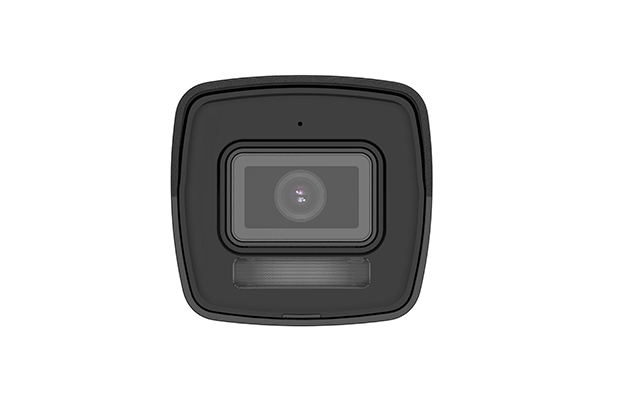

Hikvision DS-2CD1063G2-LIUF 6MP Smart Hybrid Light Fixed Bullet Network Camera

~~$ 68.00~~ $ 65.00

Part Number: DS-2CD1063G2-LIUF
High quality imaging with 6 MP resolution
Resolution: (3200 × 1800)
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Support on-board storage up to 256 GB (SD card slot) (Optional)
Warranty: 1 Year on part

Order Now

Specification

Part Number: DS-2CD1063G2-LIUF
Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:
-2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
-4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
DORI
DORI: 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
DORI: 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Supplement Light Type: IR,White Light
Supplement Light Range: IR: up to 30 m
White Light: up to 20 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream 50 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Region of Interest (ROI): 1 fixed region for main stream
Audio
Audio Type: Mono sound
Environment Noise Filtering: Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask: 4 programmable polygon privacy masks
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone: Yes
Reset Key: -F: Yes
Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General
Power: 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material: Metal & Plastic
Dimension: 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight: Approx. 285 g (0.6 lb.)
With Package Weight: Approx. 481 g (1.1 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013
Warranty: 1 Year on part
