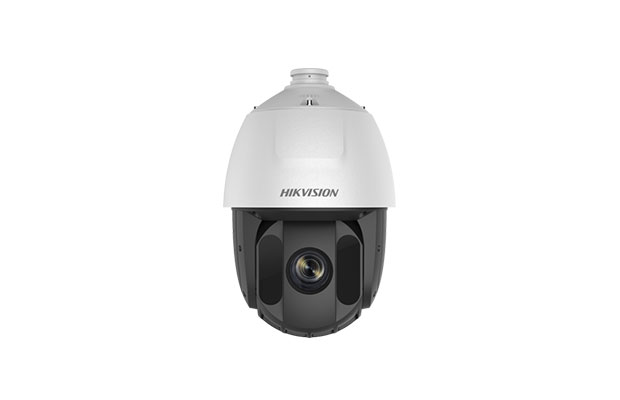

Hikvision DS-2AE5225TI-A Dome Camera

~~$ 268.00~~ $ 259.00

Part Number: DS-2AE5225TI-A
5-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25 × optical zoom allows for closer viewing of subjects in expansive areas
Up to 150m IR range ensures safety at night
Water and dust resistant (IP66)
Warranty: 1 Year on part

Order Now

Specification

Part Number: DS-2AE5225TI-A
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination:
- Color: 0.005 Lux @(F1.6, AGC ON)
- B/W: 0.001 Lux @(F1.6, AGC ON)
- 0 lux with IR
Shutter Speed:
- PAL: 1/1 s to 1/10,000 s
- NTSC: 1/1 s to 1/10,000 s
Day & Night: IR cut filter
Zoom: 25 × optical, 16 × digital
Lens
Focal Length: 4.8 mm to 120 mm, 25 × optical
FOV:
- Horizontal FOV: 57.6° to 2.5° (wide to tele)
- Vertical FOV: 34.4° to 1.4° (wide to tele)
- Diagonal FOV: 64.5° to 2.9° (wide to tele)
Focus: Auto, semi-auto, manual
Aperture: F1.6 to F3.5
Zoom Speed: Approx. 3.6 s (optical, wide to tele)
Illuminator
Supplement Light Type: IR
Supplement Light Range: 150 m
PTZ
Movement Range (Pan): 360° endless
Movement Range (Tilt): -15° to 90° (auto flip)
Pan Speed:
- Pan manual speed: 0.1° to 120°/s
- Pan preset speed: 120°/s
Tilt Speed:
- Tilt manual speed: 0.1° to 80°/s
- Tilt preset speed: 80°/s
Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
Presets: 256
Preset Freezing: Yes
Patrol Scan: 10 patrols, up to 32 presets for each patrol
Pattern Scan: 5 patterns, record time over 10 minutes for each scan
Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display: Yes
Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory: Yes
Video
Frame Rate:
- 50 Hz: 25 fps @(1920 × 1080)
- 60 Hz: 30 fps @(1920 × 1080)
Network
Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings: AGC, white balance
Wide Dynamic Range (WDR): ≥ 120 dB
Image Stabilization: EIS
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 8 programmable privacy masks
Regional Focus: Yes
Interface
Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm: 2 alarm inputs, 1 alarm output
RS-485: Half-duplex mode, Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power: 24 VAC/36 VDC, max. 30 W (IR: 10 W)
Dimension: Φ 208 mm × 305 mm (Φ 8.19" × 12.01")
Weight: Approx. 3.3 kg (7.28 Ib.)
Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language: English
Approval
Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
Warranty: 1 Year on part.
