Hardware Version:
10/100/1000 Ports:
- 8 (DGS-1210-10, DGS-1210-10P, DGS-1210-10MP)
- 24 (DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP)
- 48 (DGS-1210-52, DGS-1210-52MP)
100/1000 SFP Ports:
- 2 (DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-26)
COMBO Ports (10/100/1000 or 100/1000 SFP):

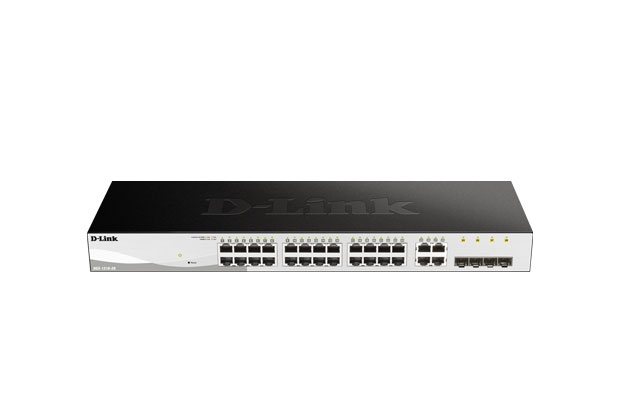

- 4 (DGS-1210-28, DGS-1210-28P, DGS-1210-28MP)
- 4 (DGS-1210-52, DGS-1210-52MP)
Port Standards & Functions:
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
- IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.3x Flow Control
- IEEE 802.3af/at compliance (for PoE ports on PoE models)
Network Cables:
- UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode:
- Full/half-duplex for 10/100 Mbps
- Full-duplex for 1000 Mbps
Media Interface Exchange:
- Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity:
- DGS-1210-10: 20 Gbps
- DGS-1210-10P: 20 Gbps
- DGS-1210-10MP: 20 Gbps
- DGS-1210-26: 52 Gbps
- DGS-1210-28: 56 Gbps
- DGS-1210-28P: 56 Gbps
- DGS-1210-28MP: 56 Gbps
- DGS-1210-52: 104 Gbps
- DGS-1210-52MP: 104 Gbps
MAC Address Table:
Static MAC Addresses:
Max. 64 Byte Packet Fwd Rate:
- DGS-1210-10: 14.88 Mpps
- DGS-1210-10P: 14.88 Mpps
- DGS-1210-10MP: 14.88 Mpps
- DGS-1210-26: 38.7 Mpps
- DGS-1210-28: 41.7 Mpps
- DGS-1210-28P: 41.7 Mpps
- DGS-1210-28MP: 41.7 Mpps
- DGS-1210-52: 77.4 Mpps
- DGS-1210-52MP: 77.4 Mpps
CPU Memory:
Flash Memory:
PoE Standards:
- DGS-1210-10: N/A
- DGS-1210-10P: 802.3af (PoE) and 802.3at (PoE+)
- DGS-1210-10MP: 802.3af (PoE) and 802.3at (PoE+)
- DGS-1210-26: N/A
- DGS-1210-28: N/A
- DGS-1210-28P: 802.3af (PoE) and 802.3at (PoE+)
- DGS-1210-28MP: 802.3af (PoE) and 802.3at (PoE+)
- DGS-1210-52: N/A
- DGS-1210-52MP: 802.3af (PoE) and 802.3at (PoE+)
PoE Capable Ports:
- DGS-1210-10: N/A
- DGS-1210-10P: Ports 1 - 8 (PoE+)
- DGS-1210-10MP: Ports 1 - 8 (PoE+)
- DGS-1210-26: N/A
- DGS-1210-28: N/A
- DGS-1210-28P: Ports 1 - 24 (PoE+)
- DGS-1210-28MP: Ports 1 - 24 (PoE+)
- DGS-1210-52: N/A
- DGS-1210-52MP: Ports 1 - 48 (PoE+)
PoE Power Budget:
- DGS-1210-10: N/A
- DGS-1210-10P: 65 W
- DGS-1210-10MP: 130 W
- DGS-1210-26: N/A
- DGS-1210-28: N/A
- DGS-1210-28P: 193 W
- DGS-1210-28MP: 370 W
- DGS-1210-52: N/A
- DGS-1210-52MP: 370 W
LEDs:
- Power per device (all models)
- Console per device (all models)
- Link/Activity/Speed per port (all models)
- PWR Max (DGS-1210-10P, -10MP, -28P, -28MP, -52MP only)
- Fan Error (DGS-1210-28P,-28MP,-52MP only)
Physical & Environmental:
Power Input:
- DGS-1210-10: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
- DGS-1210-10P: 54.0 V DC external power adapter
- DGS-1210-10MP: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
- DGS-1210-26: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
- DGS-1210-28: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
- DGS-1210-28P: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
- DGS-1210-28MP: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
- DGS-1210-52: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
- DGS-1210-52MP: 100 to 240 VAC; 50/60 Hz Internal Universal Power Supply
Max. Power Consumption (PoE enabled):
- DGS-1210-10: N/A
- DGS-1210-10P: 81.9W/100V; 80.6W/240V
- DGS-1210-10MP: 152.3W/100V; 148.7W/240V
- DGS-1210-26: N/A
- DGS-1210-28: N/A
- DGS-1210-28P: 263.9W/100V; 247.4W/240V
- DGS-1210-28MP: 446.1W/100V; 424.8W/240V
- DGS-1210-52: N/A
- DGS-1210-52MP: 478.9W/100V; 454.1W/240V
Max. Power Consumption (PoE disabled):
- DGS-1210-10: 6.31W/100V; 6.33W/240V
- DGS-1210-10P: 7.6W/100V; 7.5W/240V
- DGS-1210-10MP: 8.5W/100V; 9.4W/240V
- DGS-1210-26: 15.22W/100V; 15.11W/240V
- DGS-1210-28: 17.32W/100V; 16.94W/240V
- DGS-1210-28P: 30.6W/100V; 28.1W/240V
- DGS-1210-28MP: 29.8W/100V; 9.0W/240V
- DGS-1210-52: 34.85 W/100V; 34.2 W/240V
- DGS-1210-52MP: 54 W/100V; 54.4 W/240V
Standby Power Consumption:
- DGS-1210-10: 2.03 W/100V; 2.07W/240V
- DGS-1210-10P: 2.5 W/100V; 2.5W/240V
- DGS-1210-10MP: 4.3 W/100V; 5.2W/240V
- DGS-1210-26: 5.01 W/100V; 5.06W/240V
- DGS-1210-28: 6.49 W/100V; 6.55W/240V
- DGS-1210-28P: 19.6 W/100V; 6.6W/240V
- DGS-1210-28MP: 18.5 W/100V; 7.1W/240V
- DGS-1210-52: 13.7 W/100V; 13.9W/240V
- DGS-1210-52MP: 32 W/100V; 31.6W/240V
Acoustics:
- DGS-1210-10: 0 dB(A)
- DGS-1210-10P: 0 dB(A)
- DGS-1210-10MP: 0 dB(A)
- DGS-1210-26: 0 dB(A)
- DGS-1210-28: 0 dB(A)
- DGS-1210-28P: High speed: 51.7 dB(A); Low speed: 44.9 dB(A)
- DGS-1210-28MP: High speed: 51.7 dB(A); Low speed: 44.9 dB(A)
- DGS-1210-52: 0 dB(A)
- DGS-1210-52MP: High speed: 52.4 dB(A); Low speed: 47.6 dB(A)
Heat Dissipation:
- DGS-1210-10: 21.53 BTU/hr (100V); 21.59 BTU/hr (240V)
- DGS-1210-10P: 279.59 BTU/hr (100 V); 275.04 BTU/hr (240 V)
- DGS-1210-10MP: 519.51 BTU/hr (100 V); 507.23 BTU/hr (240 V)
- DGS-1210-26: 51.93 BTU/hr (100V); 51.57 BTU/hr (240V)
- DGS-1210-28: 59.09 BTU/hr (100V); 57.79 BTU/hr (240V)
- DGS-1210-28P: 900.36 BTU/hr (100 V); 844.23 BTU/hr (240 V)
- DGS-1210-28MP: 1521.99 BTU/hr (100 V); 1449.49 BTU/hr (240 V)
- DGS-1210-52: 118.92 BTU/hr (100V); 116.7 BTU/hr (240V)
- DGS-1210-52MP: 1634.01 BTU/hr (100 V); 1549.29 BTU/hr (240 V)
Fans:
- DGS-1210-10: No
- DGS-1210-10P: No
- DGS-1210-10MP: No
- DGS-1210-26: No
- DGS-1210-28: No
- DGS-1210-28P: 2
- DGS-1210-28MP: 2
- DGS-1210-52: No
- DGS-1210-52MP: 3
Operating Temperature:
- 23°F to 122°F (-5°C to 50°C)
Storage Temperature:
- -4°F to 158°F (-20°C to 70°C)
Operating Humidity:
- 0% to 95% relative humidity
Storage Humidity:
- 0% to 95% relative humidity
Dimensions (W x D x H):
- DGS-1210-10: 11.0” x 5.0” x 1.73”; (280 x 126 x 44 mm)
- DGS-1210-10P: 11.0” x 5.0” x 1.73”; (280 x 126 x 44 mm)
- DGS-1210-10MP: 13.0” x 7.0” x 1.73”; (330 x 180 x 44 mm)
- DGS-1210-26: 17.3” x 5.5” x 1.73”; (440 x 140 x 44 mm)
- DGS-1210-28: 17.3” x 5.5” x 1.73”; (440 x 140 x 44 mm)
- DGS-1210-28P: 17.3” x 9.8” x 1.73”; (440 x 250 x 44 mm)
- DGS-1210-28MP: 17.3” x 9.8” x 1.73”; (440 x 250 x 44 mm)
- DGS-1210-52: 17.3” x 8.3” x 1.73”; (440 x 210 x 44 mm)
- DGS-1210-52MP: 17.3” x 16.9” x 1.73”; (440 x 430 x 44 mm)
Weight:
- DGS-1210-10: 2.16 lbs (0.98 kg)
- DGS-1210-10P: 2.1 lbs (0.95 kg)
- DGS-1210-10MP: 3.9 lbs (1.77 kg)
- DGS-1210-26: 4.54 lb (2.06 kg)
- DGS-1210-28: 4.74 lb (2.15 kg)
- DGS-1210-28P: 8.3 lbs (3.75 kg)
- DGS-1210-28MP: 8.7 lbs (3.94 kg)
- DGS-1210-52: 7.6 lb (3.46 kg)
- DGS-1210-52MP: 13.8 lbs (6.26 kg)
MTBF:
- DGS-1210-10: 1,380,058 hours
- DGS-1210-10P: 729,258 hours
- DGS-1210-10MP: 1,274,005 hours
- DGS-1210-26: 1,082,534 hours
- DGS-1210-28: 992,594 hours
- DGS-1210-28P: 469,262 hours
- DGS-1210-28MP: 277,967 hours
- DGS-1210-52: 400,667 hours
- DGS-1210-52MP: 236,406 hours
Software Features - All Models:
L2 Features:
- MAC Address Table: 8K entries
- IGMP Snooping
- IGMP v1/v2 Snooping
- IGMP v3 awareness
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
Loopback Detection:
- 802.3ad Link Aggregation: Maximum of 8 groups/8 ports per group
LLDP:
Jumbo Frame:
Spanning Tree Protocol:
- 802.1D STP
- 802.1W RSTP
- 802.1s MSTP
Flow Control:
- 802.3x Flow Control
- HOL Blocking Prevention
Port Mirroring:
- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both
Multicast Filtering:
- Forwards all unregistered groups
- Filters all unregistered groups
Configurable MDI/MDIX:
- MLD snooping v1/v2 (256 groups)
VLAN:
- 802.1Q
- VLAN Group
- Max. 256 static VLAN groups
- Configurable VID from 1 - 4094
- Asymmetric VLAN
- Auto Voice VLAN
- Max. 10 user-defined OUI
- Max. 8 default OUI
- Auto Surveillance VLAN
Quality of Service (QoS):
- 802.1p Quality of Service
- 8 queues per port
- Queue Handling
- Strict
- Weighted Round Robin (WRR)
- Bandwidth Control
- Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
QoS based on:
- 802.1p priority queues
- DSCP
- MAC address
- EtherType
- IP address
- Protocol type
- ToS
- IP preference
- IPv6 Traffic Class
- TCP/UDP port
L3 Features:
- IP interface
- Supports 4 interfaces
- IPv6 Neighbor Discovery (ND)
- Static routing
- 124 IPv4 static route entries
- 50 IPv6 static route entries
Access Control List (ACL):
- Max. 50 access lists
- Max. 768 rules shared by IPv4, MAC, and IPv6
- Each rule can only be associated with a single port
- ACL based on
- MAC address
- 802.1p priority mask
- VID mask
- Source/destination MAC address mask
- EtherType mask
- IP address
- Source/destination IP address mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
- IPv6 address
- Source/destination IP address mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
- IPv6 traffic class mask
Security:
- Broadcast/Multicast/Unicast Storm Control
- D-Link Safeguard Engine
- Traffic segmentation
- SSH v2
- TLS v1.0
- DoS attack prevention
- 802.1X Port-based Access Control
- Port Security
- Supports up to 64 MAC addresses per port
- ARP Spoofing Prevention
- Max. 127 entries
- DHCP Server Screening
- IP-MAC-Port Binding (Smart Binding)
- ARP Inspection
- Max. 256 entries
- IPv4 Inspection
- Max. 127 entries
- IPv6 Inspection
- Max. 63 entries
- DHCP Snooping
- Max. 512 entries
AAA:
- 802.1X Authentication
- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP
- Max. 128 entries when using local database
- IPv6 RADIUS server
- Support MD5 authentication
OAM:
- Cable diagnostics
- Factory reset
Management:
- Web-based GUI
- D-Link Network Assistant Utility
- Compact CLI
- Telnet Server
- TFTP Client
- Configurable MDI/MDIX
- SNMP
- Supports v1/v2c/v3
- SNMP Trap
- Backup/upgrade firmware
- Smart Wizard
- Upload/download configuration file
- BootP/DHCP Client
- System Log
Optional 1 Gbps SFP Transceivers:
- DGS-712 1000BASE-T SFP Transceiver
- DEM-310GT 1000BASE-LX SFP Transceiver, Single-mode
- DEM-311GT 1000BASE-SX SFP Transceiver, Multimode
- Warranty: 1 Year on part.
