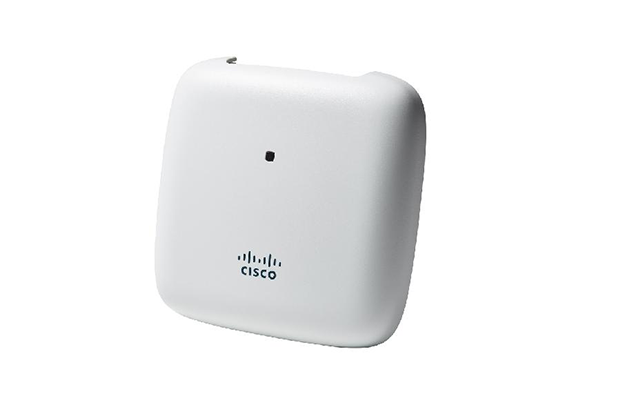

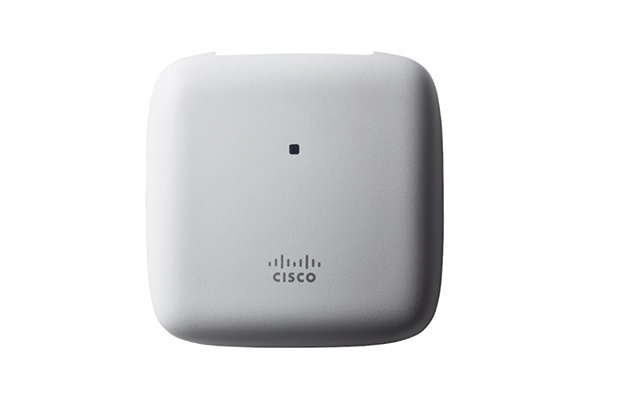

Cisco CBW140AC-S Ceiling Moun Access Point

~~$ 219.00~~ $ 209.00

Part Number: CBW140AC-S
Maximum # of Access Points: 50
Recommended up to 25
2.4 GHz, gain 2 dBi
5 GHz, gain 4 dBi
Warranty: Life time warranty.

Order Now

Specification

Part Number: CBW140AC-S
Specification
Authentication and security:
Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release
802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
Segmentation via VLANs (up to 16)
802.11r and 802.11i
Guest network can also authenticate against: Google and Facebook
Maximum clients: Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system
Maximum # of Access Points: 50
Recommended up to 25
Max # of Mesh Extenders:
Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
802.11ac:
2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
20-, 40-, and 80-MHz channels
Dynamic Frequency Selection (DFS)
Ethernet ports:
Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to Master AP
Integrated antennas:
2.4 GHz, gain 2 dBi
5 GHz, gain 4 dBi
Interfaces:
1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
RJ-45 console port (not functional)
Indicators: Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) : 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm)
Weight: 14 oz (400 g)
Environmental
Operating
Temperature: 32° to 104°F (0° to 50°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 9843 ft (3000 m) at 40°C
Nonoperating (storage and transportation)
Temperature: –22° to 158°F (-30° to 70°C)
Humidity: 10% to 90% (noncondensing)
Maximum altitude: 15,000 ft (4500 m) at 25°C
System:
1 GB DRAM, 256 MB flash
710-MHz quad core processor
Powering options:
802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended
Optional Cisco Business PoE injector
Power draw: 8.3W (maximum, on PoE)
Mounting and physical security Included with the access point:
Mounting bracket
Torx security screw
Ceiling rail mount clip
Warranty: Life time warranty.
