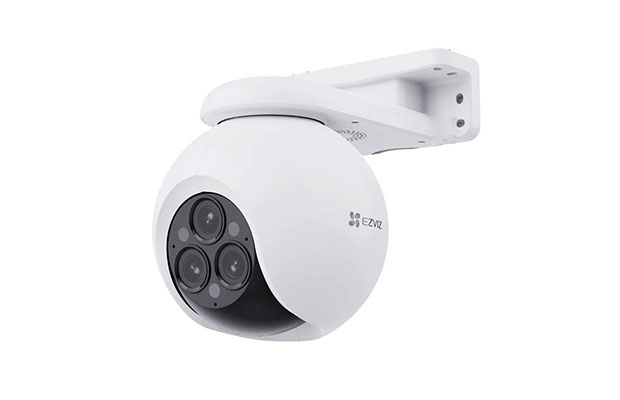

EZVIZ​ H80f 2K⁺ (4MP) Multi Triple-Lens Smart Home Wi-Fi Camera

$ 88.00 $ 83.00
  • Part Number: CS-H80f (4MP)
  • Resolution: 2560 × 1440 (4MP)
  • 12× Mixed Zoom
  • Image Sensor: 1/3” Progressive Scan CMOS
  • Shutter Speed: Self-adaptive shutter
  • Lens Mount: M12
  • Day & Night: IR-cut filter with auto-switching
  • Video Compression: H.265 / H.264
  • Wi-Fi Standard: IEEE802.11b , 802.11g , 802.11n
  • 360° Panoramic View
  • Warranty: 1-year on part.

Specification

  • Part Number: CS-H80f-R100-8G444WKFL
  • Camera
  • Image Sensor: 1/3” Progressive Scan CMOS * 3
  • Shutter Speed: Self-adaptive shutter
  • Lens: 2.8mm @ F1.6, viewing angle: 54° (Vertical), 96° (Horizontal), 110° (Diagonal)
  • - 6mm @ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)
  • - 12mm @ F1.6, viewing angle: 14° (Vertical), 25° (Horizontal), 29° (Diagonal)

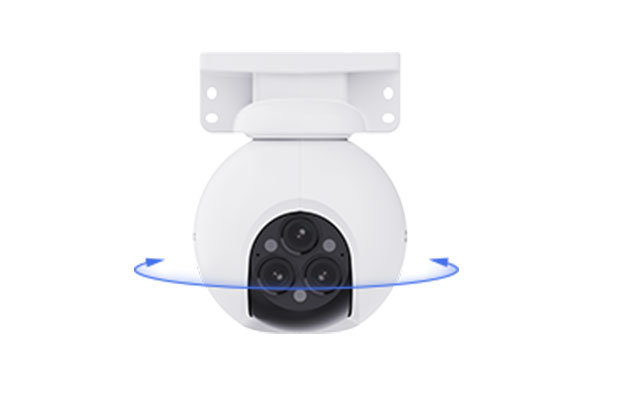

  • PT Angle: Pan: 340°, Tilt: 70°
  • Minimum Illumination: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
  • Lens Mount: M12
  • Day & Night: IR-cut filter with auto-switching
  • DNR: 3D DNR
  • WDR: Digital WDR
  • BLC: Supports
  • Night Vision: 30 m / 98 ft
  • Video & Audio
  • Max. Resolution: 2560 × 1440
  • Frame Rate: Self-adaptive during network transmission
  • Video Compression: H.265 / H.264
  • H.265 Type: Main Profile
  • Video Bit Rate: Quad HD; Full HD;HD adaptive bit rate
  • Audio Bit Rate: Self-adaptiv
  • Network
  • Wi-Fi Standard: IEEE802.11b , 802.11g , 802.11n
  • Frequency Range: 2.4 GHz ~ 2.4835 GHz
  • Channel Bandwidth: Supports 20MHz
  • Security: 64 / 128 - bit WEP , WPA / WPA2 , WPA-PSK / WPA2-PSK
  • Transmission Rate: 11b : 11Mbps , 11g : 54Mbps , 11n : 150Mbps
  • Wi-Fi Pairing: AP pairing
  • Protocol: EZVIZ cloud proprietary protocol
  • Interface Protocol: EZVIZ cloud proprietary protocol
  • Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
  • Function
  • Smart Alarm: AI-Powered Human Shape Detection / Vehicle
  • Customized Alert Area: Detection
  • Two-Way Talk: Supports
  • Auto Zoom Tracking: Supports
  • General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
  • Storage
  • Local Storage: Supports microSD card (Max. 512 GB)
  • Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)
  • General
  • Operating Conditions: -30°C to 50°C, Humidity 95% or less (non-condensing)
  • IP Grade: IP67
  • Power Supply: DC 12 V / 1.5 A
  • Power Consumption: Max. 18 W
  • Dimensions: 168 × 112 × 156 mm (6.61 × 4.41 × 6.14 inch)
  • Packaging Dimensions: 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)
  • Weight
  • Product : 575.7 g (20.31oz)
  • With package : 979.89 g (34.56oz)
  • In the box
  • In the box
  • - Camera
  • - Drill Template
  • - Waterproof Kit
  • - Screw Kit
  • - Power Adapter
  • - Regulatory Information × 2
  • - Quick Start Guide
  • Warranty: 1-year on part.
