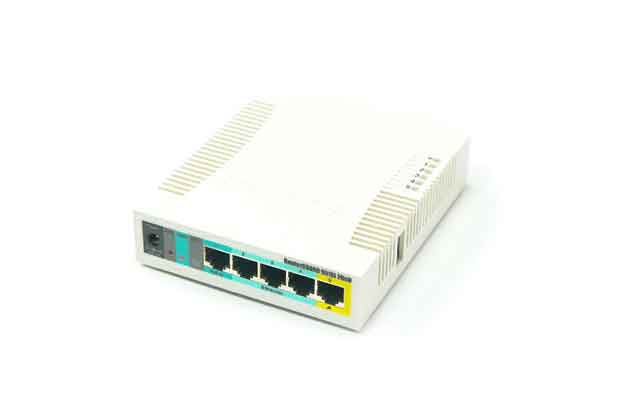

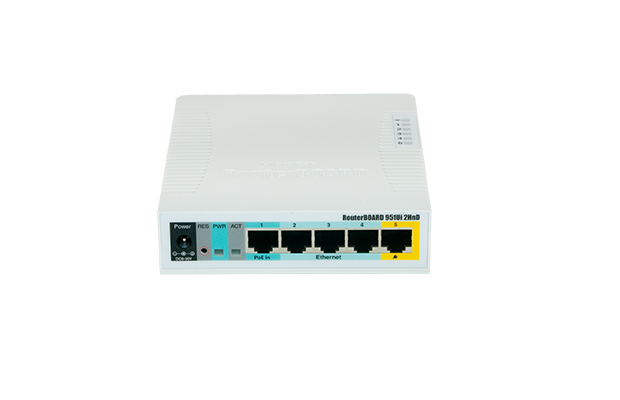

MikroTik RouterBOARD RB951Ui-2HnD

$ 78.00 $ 73.00
  • Part Number:  RB951Ui-2HnD
  • Brand Name:  Mikrotik
  • Warranty: 1 Year on part

Specification

  • Part Number: RB951Ui-2HnD
  • Specifications
  • Details:
  • Product code: RB951Ui-2HnD
  • Architecture: MIPSBE
  • CPU: AR9344
  • CPU core count: 1
  • CPU nominal frequency: 600 MHz
  • Dimensions: 113x138x29mm
  • RouterOS license: 4
  • Operating System: RouterOS
  • Size of RAM: 128 MB
  • Storage size: 128 MB
  • Storage type: NAND
  • MTBF: Approximately 100'000 hours at 25C
  • Tested ambient temperature: -20C +60C
  • Wireless capabilities
  • Details:
  • Wireless 2.4 GHz Max data rate: 300 Mbit/s
  • Wireless 2.4 GHz number of chains: 2
  • Wireless 2.4 GHz standards: 802.11b/g/n
  • Antenna gain dBi for 2.4 GHz: 2.5
  • Wireless 2.4 GHz chip model: AR9344
  • Wireless 2.4 GHz generation: Wi-Fi 4
  • Ethernet
  • Details:
  • 10/100 Ethernet ports: 5
  • Peripherals
  • Details:
  • Number of USB ports: 1
  • USB Power Reset: Yes
  • USB slot type: USB type A
  • Max USB current (A): 1
  • Powering
  • Details:
  • Number of DC inputs: 2 (PoE-IN, DC jack)
  • DC jack input Voltage: 8-30 V
  • Max power consumption: 24 W
  • Max power consumption without attachments: 7 W
  • Cooling type: Passive
  • PoE in: Passive PoE
  • PoE in input Voltage: 8-30 V
  • PoE-out
  • Details:
  • PoE-out ports: Ether5
  • PoE out: Passive PoE
  • Max out per port output (input 18-30 V): 500 mA
  • Max total out (A): 500 mA
  • Certification & Approvals
  • Details:
  • Certification: CE, FCC, IC, EAC, ROHS
  • IP: IP20
  • Warranty: 1 Years on part.
