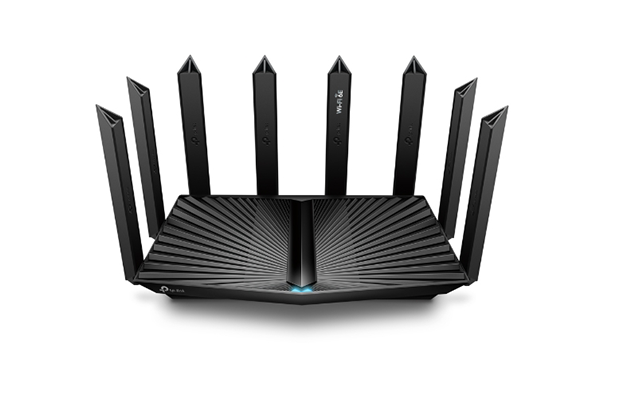

TP-Link Archer AXE95 AXE7800 Tri-Band Wi-Fi 6E Router

~~$ 244.00~~ $ 235.00

Part Number: Archer AXE95
AXE7800 Tri-Band WiFi – 7800 Mbps tri-band WiFi for ultra-fast browsing, 8K streaming, online gaming, and large file downloading, all at the same time.†
WiFi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
Ultra Connectivity – 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
HomeShield – Customize your home network with enhanced security and control.*
OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
Compatible with Alexa – Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Extensive Coverage – 8× antennas and Beamforming ensure broad coverage.
More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
Warranty: 3 Years on Part.

Order Now

Specification

Part Number: Archer AXE95
WIRELESS
Standards:
IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds:
AXE7800
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 4802 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range:
4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity:
Very High
Tri-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth
Working Modes: Router Mode, Access Point Mode
SECURITY
Network Security:
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network:
-1× 6 GHz Guest Network,
-1× 5 GHz Guest Network,
-1× 2.4 GHz Guest Network
VPN Server:
-OpenVPN Server
-PPTP VPN Server
-L2TP VPN Server
VPN Client:
-Open VPN Client
-PPTP VPN Client
-L2TP VPN Client
WiFi Encryption WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor: 1.7 GHz Quad-Core CPU

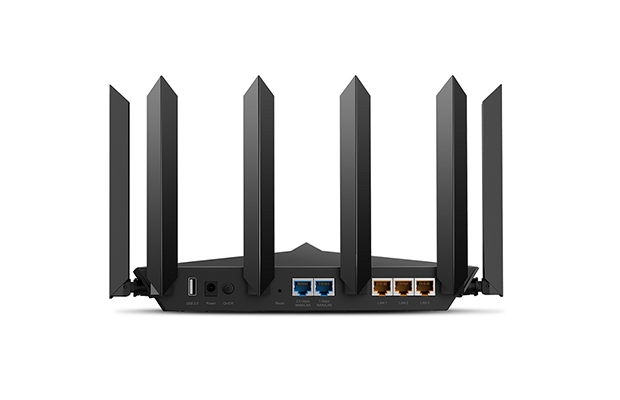

Ethernet Ports:
-1× 2.5 Gbps WAN/LAN Port
-1× 1 Gbps WAN/LAN Port
-3× 1 Gbps LAN Ports
USB Support: 1× USB 3.0 Port, 1× USB 2.0 Port
Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Power: On/Off Button, Reset Button
Power: 12 V ⎓ 3.3 A
SOFTWARE
Protocols: IPv4, IPv6
Service Kits: HomeShield, Learn More>
OneMesh™:
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls:
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service: QoS by Device
Cloud Service:
Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding:
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV:
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP:
Address Reservation
DHCP Client List
Server
DDNS:
TP-Link
NO-IP
DynDNS
Management:
Tether App
Webpage
OTHER
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications: FCC, RoHS
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)
CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)
WiFi Reception Sensitivity 2.4 GHz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
PHYSICAL
Dimensions (W×D×H): 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm)
Package Contents:
Wi-Fi Router Archer AXE95
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Warranty: 3 Years on Part.
