TP-Link Archer AX95 AX7800 Tri-Band 8-Stream Wi-Fi 6 Router

~~$ 242.00~~ $ 233.00

Part Number: Archer AX95
Faster Tri-Band AX7800 WiFi 6: Up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.1
Ultra Connectivity: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 2× USB ports ensure max flexibility and boosted throughput.
Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.
More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.1
Powerful CPU: 1.7 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
HomeShield: Customize your home network with enhanced security and control.5
Refined Security: WPA3 reinforces Wi-Fi encryption and guest network for improved security.
Warranty: 3 Years on part.

Order Now

Specification

Part Number: Archer AX95
WIRELESS
Standards Wi-Fi 6:
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX7800:
• 5 GHz-1: 4804 Mbps (802.11ax, HE160)
• 5 GHz-2: 2402 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range: 4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High:
Tri-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth
Working Modes:
Router Mode
Access Point Mode
SECURITY
Network Security:
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network:
• 1× 5 GHz-1 Guest Network
• 1× 5 GHz-2 Guest Network
• 1× 2.4 GHz Guest Network
VPN Server:
• OpenVPN
• PPTP
• L2TP
VPN Client:
• OpenVPN
• PPTP
• L2TP
WiFi Encryption:
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor:
1.7 GHz Quad-Core CPU

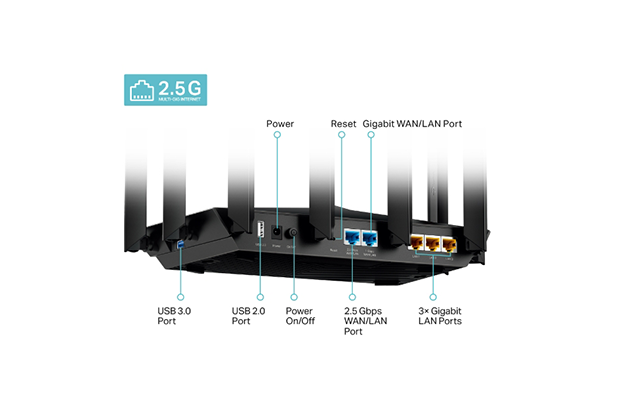

Ethernet Ports:
• 1× 2.5 Gbps WAN/LAN Port
• 1× 1 Gbps WAN/LAN Port
• 3× 1 Gbps LAN Ports
USB Support:
• 1× USB 3.0 Port
• 1× USB 2.0 Port
• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
• Supported Functions:
FTP Server
Media Server
Samba Server
Buttons:
• LED On/Off Button
• WPS Button
• Wi-Fi On/Off Button
• Power On/Off Button
• Reset Button
Power: 12 V ⎓ 3.3 A
SOFTWARE
Protocols:
• IPv4
• IPv6
Service Kits:
HomeShield
Learn More>
OneMesh™:
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls:
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types:
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service: QoS by Device
Cloud Service:
Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding:
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV:
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP:
• Address Reservation
• DHCP Client List
• Server
DDNS:
• TP-Link
• NO-IP
• DynDNS
Management:
• Tether App
• Webpage
OTHER
System Requirements:
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other javascript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment:
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power • FCC:
≤30dBm (5.17GHz~5.25GHz);
≤23dBm (5.25GHz~5.35GHz);
≤23dBm (5.49GHz~5.725GHz);
≤28dBm (5.725GHz~5.825GHz);
≤28dBm (2.4GHz)
• CE:
≤23dBm EIRP (5.17GHz~5.35GHz);
≤30dBm EIRP (5.47GHz~5.725GHz);
≤20dBm EIRP (2.4GHz)
WiFi Reception Sensitivity
• 2.4 GHz:
11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -96dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -62dBm
• 5 GHz:
11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -61dBm,
11ac VHT80 MCS0: -89dBm, 11ac VHT80 MCS11: -58dBm,
11ac VHT160 MCS0: -84dBm, 11ac VHT160 MCS11: -53dBm,
11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -60dBm,
11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm,
11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm,
11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm
PHYSICAL
Dimensions (W×D×H): 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)
Package Contents:
• Wi-Fi Router Archer AX95
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
Warranty: 3 Years on part.
