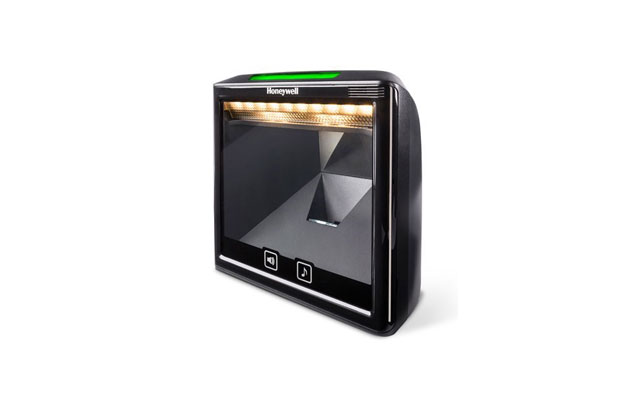

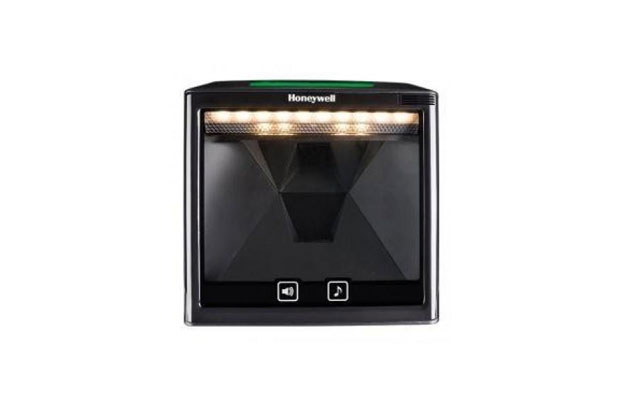

Honeywell 7980G-2USBC-0 Solaris™ 7980g USB Kit

$ 340.00 $ 329.00
  • Part Number: 7980G-2USBC-0
  • Brand Name: Honeywell
  • Warranty: 1 Year on part
bject id="kpm_plugin" type="application/x-KPMPlugin">

Specification

  • Brand Name: Honeywell
  • MECHANICAL:
  • Dimensions (HxWxD): 148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in)
  • Weight: 527 g (19 oz.)
  • ELECTRICAL:
  • Scanner Unit Input Voltage: 5.0 to 5.2 V (not including auxiliary scanner)
  • Operating Current:  400mA (not including auxiliary scanner)
  • Standby Current: 270mA (not including auxiliary scanner)
  • Sleep Mode Current: 210mA (not including auxiliary scanner)
  • Power Supply (sold separately):
  • Input Voltage: 100 - 240V/50 - 60HZ
  • Output Current: 5.2V / 1.0 A
  • Host System Interfaces: USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
  • ENVIRONMENTAL:
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60 °C (- 4°F to 140°F)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Environmental Sealing: IP5X
  • Light Levels: 100,000 lux
  • SCAN PERFORMANCE:
  • Scan Pattern: Area image (1280 x 960 pixel array)
  • Motion Tolerance: 13mil at optimal focal point
  • Scan Angle: Horizontal: 42°; Vertical: 34°
  • Print Contrast: 25% minimum reflectance difference
  • Pitch, Skew: +/-65°, +/-75°
  • Warranty: 1 Year on part
