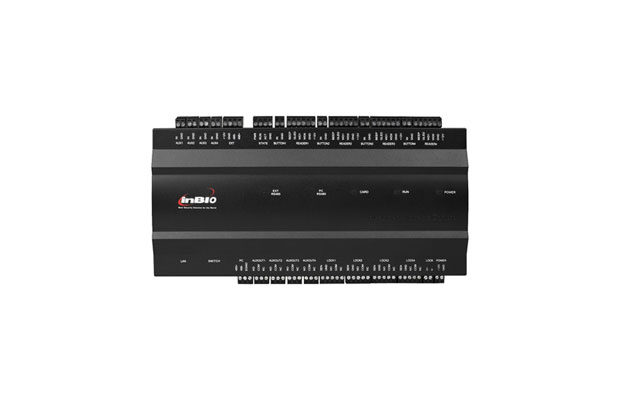

INBIO-460 PACKAGE ZKTeco IP-based Biometric Door Access Control Panel

$ 358.00 $ 349.00
  • Part Number: inBio460
  • Four-door One-way Controller
  • Fingerprint: 3000 Card:30,000
  • Event Buffer: 100,000
  • Reader Port: 2ea (Weigand and RS485 connect 2 FP readers)
  • Communication: RS485, TCP/IP
  • Warranty: 1 year on part.

Specification

  • Part Number:  inBio460
  • Number of doors controller: 4 Door
  • Card holders Capacity: 30,000
  • Fingerprint Capacity: 3,000
  • Log Events Capacity: 100,000
  • Communication: TCP/IP and RS-485
  • Package Dimension: 350(L)×90(H)×300(W)mm
  • Package Weight: 3.7kg
  • CPU: 32 bit 400MHz CPU
  • RAM: 32M
  • Flash Memory: 128M
  • Power: 9.6V-14.4V DC
  • Operating Temp: 0-45 °C
  • Operating Humidity: 20% to 80%
  • Numbers of readers  supported: 12 (8 RS-485 Reader,  4 26-bit wiegand reader)
  • Types of readers supported: 26-bit Wiegand and RS485 FR Series Reader
  • Number of Inputs: 12( 4 Exit Device, 4 Door Status, 4 AUX)
  • Number of Outputs: 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
  • Warranty:  1 year on part
