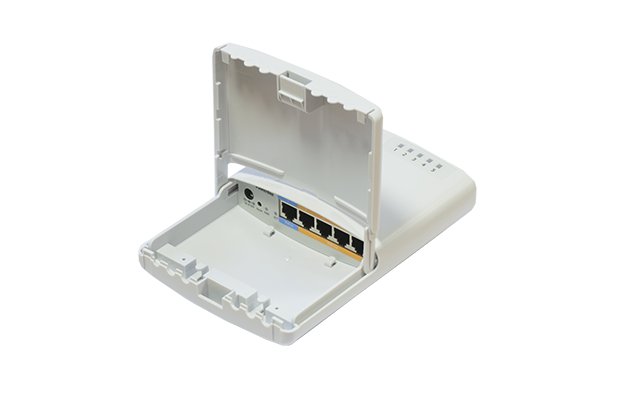

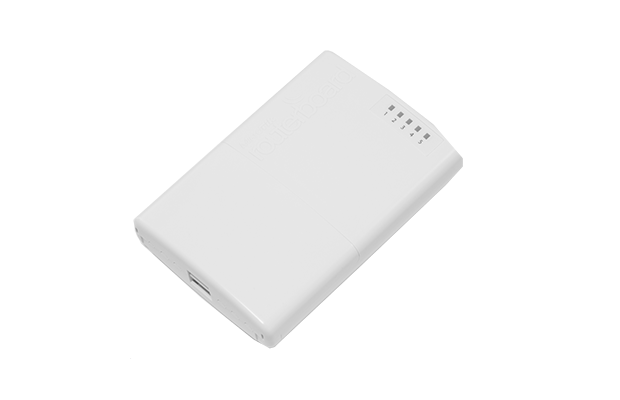

MikroTik PowerBOX RB750P-PBr2

~~$ 90.00~~ $ 85.00

Part Number: RB750P-PBr2
CPU nominal frequency: 650 MHz
Switch chip model: QCA9533
Operating System: RouterOS
10/100 Ethernet ports: 5
Warranty: 1Year on Part.

Order Now

Specification

Part Number: RB750P-PBr2
Specifications
Details:
Architecture: MIPSBE
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Switch chip model: QCA9533
Dimensions: 125x178x48mm
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
Details:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 8-30 V
Max power consumption: 50 W
Max power consumption without attachments: 2 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 8-30 V
PoE-out
Details:
PoE-out ports: Ether2-Ether5
PoE out: Passive PoE
Max out per port output (input 18-30 V): 1 A
Max total out (A): 2 A
Ethernet
Details:
10/100 Ethernet ports: 5
Other
Details:
Current Monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals
Details:
Certification: CE, EAC, ROHS
IP: 20
Warranty: 1Year on Part.
