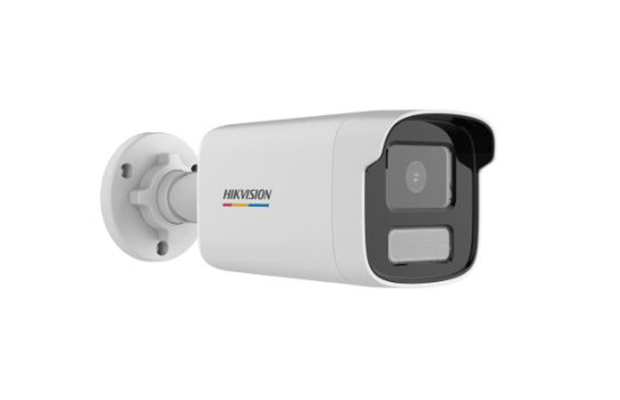

Hikvision DS-2CD1T67G2-LUF 6MP ColorVu MD 2.0 Fixed Bullet Network Camera

~~$ 84.00~~ $ 79.00

Part Number: DS-2CD1T67G2-L(UF)
High quality imaging with 6 MP resolution
Resolution: 3200 × 1800
24/7 colorful imaging
Support Human and Vehicle Detection
Water and dust resistant (IP67)
Clear imaging even with strong back lighting due to 120 dB WDR
Efficient H.265+ compression technology
-F model: Support on-board storage up to 512GB (SD card slot)(Optional)
-U model: Built-in microphone for real-time audio security(Optional)
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-2CD1T67G2-LUF
Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Max. Resolution: 3200 × 1800
Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Day & Night: 24/7 color imaging
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:
-2.8 mm, horizontal FOV: 117°, vertical FOV: 64°, diagonal FOV: 138°
-4 mm, horizontal FOV: 82°, vertical FOV: 45°, diagonal FOV: 95°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 2 m to ∞, 4 mm: 3.1 m to ∞
DORI
DORI: 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
DORI: 4 mm, D: 92 m, O: 36 m, R: 18 m, I: 9 m
Illuminator
Supplement Light Type: White Light
Supplement Light Range: Up to 50 m
Smart Supplement Light: Yes
Video
Main Stream
50 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Region of Interest (ROI): 1 fixed region for main stream
Audio
Audio Type: -U: Mono sound
Environment Noise Filtering: -U: Yes
Audio Sampling Rate: -U: 8 kHz/16 kHz
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G (only -F model supports)),ISAPI,SDK
User/Host: Up to 32 users
-3 user levels: administrator, operator, and user
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Client: iVMS-4200,Hik-Connect
Web Browser:
-Plug-in required live view: IE 10, IE 11,
-Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 4 programmable polygon privacy masks
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: -U: Yes
Reset Key: -F: Yes
Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture
General
Power: 12 VDC ± 25%, 5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.2 W
Material: Front cover: metal, body: plastic, bracket: metal
Dimension: 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")
Package Dimension: 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight: -L: Approx. 560 g (1.2 lb.), -LUF: Approx. 580 g (1.3 lb.)
With Package Weight: -L: Approx. 615 g (1.4 lb.), -LUF: Approx. 635 g (1.4 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015
Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013
Warranty: 1 Year on part.
