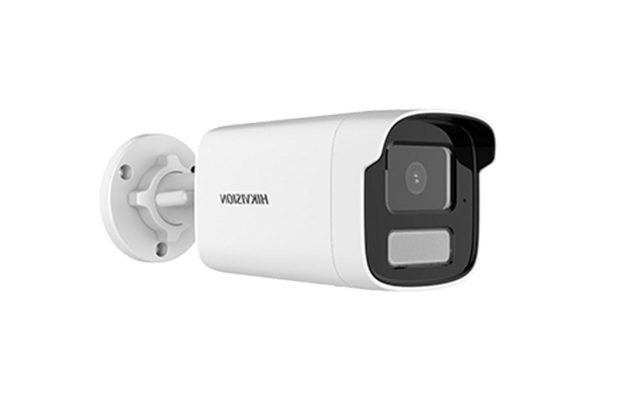

Hikvision DS-2CD1T43G2-LIUF 4MP Smart Hybrid Light Fixed Bullet Network Camera

~~$ 74.00~~ $ 69.00

Part Number: DS-2CD1T43G2-LIU(F)
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-2CD1T43G2-LIU(F)
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Day & Night: IR cut filter
Lens
Lens Type: Fixed focal lens, 4 and 6 mm optional
Focal Length & FOV:
-4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
-6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
Iris Type: Fixed
Aperture: F1.6
Lens Mount: M12
DORI
DORI
-4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
-6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m
Illuminator
Supplement Light Range: Up to 50 m
Smart Supplement Light: Yes
Supplement Light Type: IR,White Light
IR Wavelength: 850 nm
Video
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
H.265 Type: Main Profile
Video Compression:
-Main stream: H.265+/H.265/H.264+/H.264,
-Sub-stream: H.265/H.264/MJPEG
H.264 Type: Baseline Profile,Main Profile,High Profile
Video Bit Rate: 32 Kbps to 8 Mbps
Bit Rate Control: CBR,VBR
Region of Interest (ROI): 1 fixed region for main stream
Audio
Audio Sampling Rate: 8 kHz/16 kHz
Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Type: Mono sound
Environment Noise Filtering: Yes
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Network
Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Client: iVMS-4200,Hik-Connect
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask: 4 programmable polygon privacy masks
Interface
On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone: Yes
Reset Key: -F: Yes
Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General
Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7 W
Material: Metal & Plastic
Dimension: 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")
Package Dimension: 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight: Approx. 580 g (1.3 lb.)
With Package Weight: Approx. 635 g (1.4 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
Protection: IP67: IEC 60529-2013
EMC: FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Warranty: 1 Year on part.
