TP-Link Archer AX12 AX1500 Wi-Fi 6 Router

$ 60.00 $ 55.00
  • Part Number: Archer AX12
  • Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
  • Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)15
  • Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.24
  • More Reliable Coverage:  Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
  • Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.3
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
  • Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.
  • Warranty: 3 Years on part.

Specification

  • Part Number: Archer AX12
  • SECURITY
  • Network Security:
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
  • Guest Network:
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
  • VPN Server: OpenVPN, PPTP
  • WiFi Encryption:
  • WPA2-PSK
  • WPA2-PSK/WPA-PSK
  • WPA3-Personal
  • WPA3-Personal/WPA2-PSK
  • WPA2-Enterprise
  • WPA/WPA2-Enterprise encryptions
  • WIRELESS
  • Standards:
  • Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11n/b/g 2.4 GHz
  • WiFi Speeds:
  • AX1500
  • 5 GHz: 1201 Mbps (802.11ax)
  • 2.4 GHz: 300 Mbps (802.11n)
  • WiFi Range
  • 2-3 Bedroom Houses
  • 4× Fixed High-Performance Antennas
  • Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
  • Concentrates wireless signal strength towards clients to expand WiFi range
  • WiFi Capacity High
  • Dual-Band
  • Allocate devices to different bands for optimal performance
  • OFDMA
  • Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness
  • Improves network efficiency by limiting excessive occupation
  • 4 Streams
  • Connect your devices to more bandwidth
  • Working Modes: Router Mode, Access Point Mode
  • HARDWARE

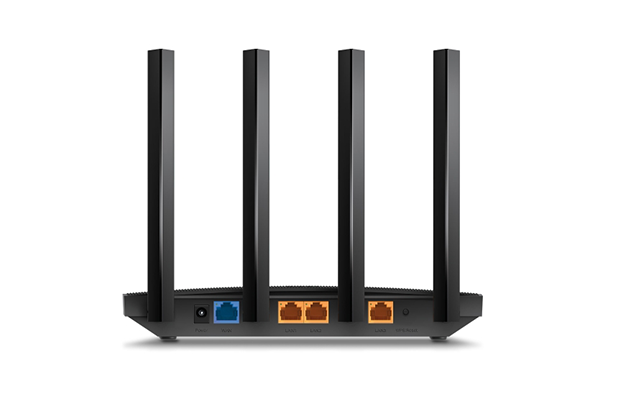

  • Ethernet Ports: 1× Gigabit WAN Port, 3× Gigabit LAN Ports
  • Buttons: WPS/Wi-Fi Button, Reset Button
  • Power: 12 V ⎓ 1 A
  • SOFTWARE
  • Protocols:
  • IPv4
  • IPv6
  • Parental Controls:
  • URL Filtering
  • Time Controls
  • WAN Types:
  • Dynamic IP
  • Static IP
  • PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
  • Quality of Service:
  • QoS by Device
  • Cloud Service:
  • Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS
  • NAT Forwarding:
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
  • IPTV:
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
  • DHCP Address Reservation
  • DHCP Client List
  • Server
  • DDNS:
  • TP-Link
  • NO-IP
  • DynDNS
  • Management:
  • Tether App
  • Webpage
  • OTHER
  • System Requirements:
  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC,
  • OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
  • Java-enabled browser
  • Cable or DSL Modem
  • Subscription with an internet service provider (for internet access)
  • Certifications: FCC, CE, RoHS
  • Environment:
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
  • TEST DATA
  • WiFi Transmission Power
  • CE:
  • <20dBm(2.4 GHz)
  • <23dBm(5.15 GHz~5.25 GHz)
  • FCC:
  • <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
  • WiFi Reception Sensitivity 5 GHz:
  • 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
  • 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
  • 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
  • 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
  • 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
  • 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
  • 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
  • 2.4 GHz:
  • 11g 6Mbps: -96 54Mbps: -80
  • HT20-MCS0: -97 MCS7: -78
  • HT40-MCS0: -94 MCS7: -75
  • PHYSICAL
  • Dimensions (W×D×H): 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm)
  • Package Contents:
  • Wireless Router Archer AX12
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
  • Warranty: 3 Years on part.
