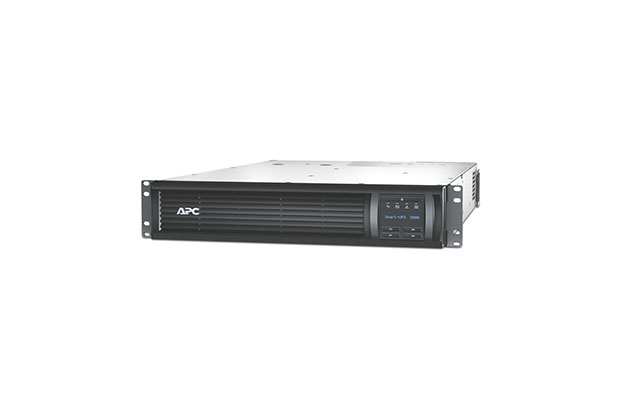

APC Smart-UPS 3000VA LCD RM 2U 230V with SmartConnect (SMT3000RMI2UC)

$ 1,330.00 $ 1,310.00
  • Part Number: SMT3000RMI2UC
  • Max Configurable Power (Watts): 2.7kWatts / 3.0kVA
  • Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • warranty: 3 years repair or replace (excluding battery) and 2 year for battery

Specification

  • Brand Name: APC Smart-UPS
  • Output:
  • Max Configurable Power (Watts): 2.7kWatts / 3.0kVA
  • Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 220, 240
  • Topology: Line Interactive
  • Waveform type: Sine wave
  • Transfer Time: 6ms typical : 10ms maximum
  • Input:
  • Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input voltage range for main operations: 160 - 286V
  • Input voltage adjustable range for mains operation: 151 - 302V
  • Number of Power Cords: 1
  • Other Input Voltages: 220, 240
  • Batteries & Runtime:
  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 3hour(s)
  • Replacement Battery: RBC43
  • Expected Battery Life (years): 3 - 5
  • RBC Quantity: 1
  • Battery Charge Power (Watts): 182Watts
  • Battery Volt-Amp-Hour Capacity: 547
  • Runtime: View Runtime Graph, View Runtime Chart
  • Efficiency: View Efficiency Graph
  • Communications & Management:
  • Interface Port(s): RJ-45 Serial, SmartSlot, USB
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
  • Available SmartSlot™ Interface Quantity: 1
  • Surge Protection and Filtering:
  • Surge energy rating: 320Joules
  • Physical:
  • Maximum Height: 86MM, 8.6CM
  • Maximum Width: 432MM, 43.2CM
  • Maximum Depth: 683MM, 68.3CM
  • Net Weight: 44.28KG
  • Shipping weight: 51.7KG
  • Shipping Height: 254MM, 25.4CM
  • Shipping Width: 600MM, 60.0CM
  • Shipping Depth: 980MM, 98.0CM
  • Units per Pallet: 8.0
  • Environmental:
  • Operating Temperature: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95 %
  • Operating Elevation: 0-3000meters
  • Storage Temperature: -15 - 45 °C
  • Storage Relative Humidity: 0 - 95 %
  • Storage Elevation: 0-15000meters
  • Audible noise at 1 meter from surface of unit: 55.0dBA
  • Online thermal dissipation: 348.0BTU/hr
  • Conformance:
  • Approvals: CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
  • warranty: 3 years repair or replace (excluding battery) and 2 year for battery
