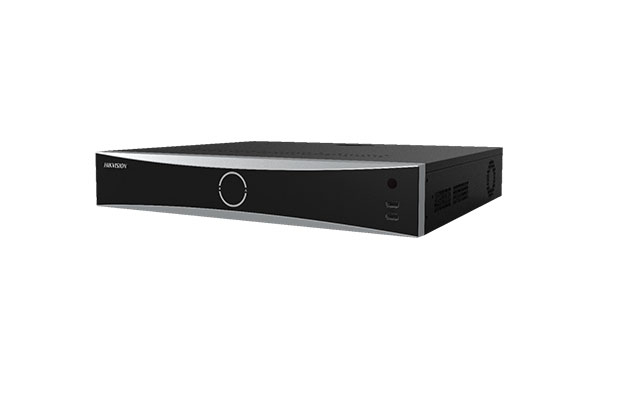

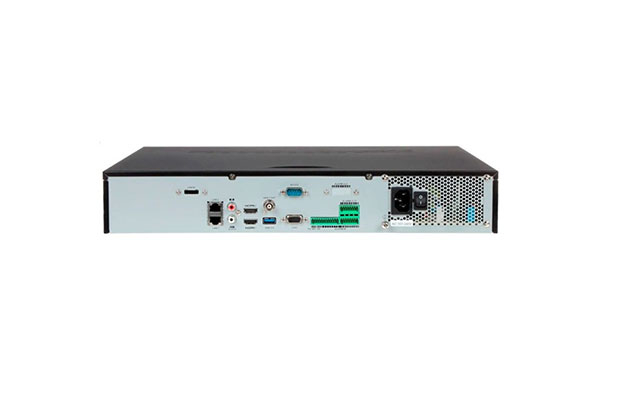

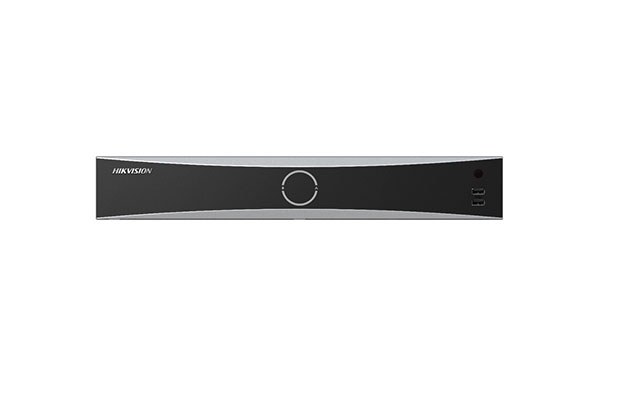

Hikvision iDS-7732NXI-I4/X 32-ch 1.5U 4K DeepinMind NVR (Support HDD 4Pcs)
$699.00
- Part Number: iDS-7732NXI-I4/X
- 32-ch 1.5U 4K DeepinMind NVR
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 16-ch perimeter protection
- Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
- Up to 8-ch video structuralization
- Up to 32-ch IP cameras can be connected
- Up to 16-ch 1080p decoding capability
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: iDS-7732NXI-I4/X
- Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library: Up to 16 face picture libraries, with up to 100,000 face pictures in total
- (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Facial Detection and Analytics Performance: 8-ch 8 MP human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison: 16-ch face picture comparison alarm
- Perimeter Protection
- Human/Vehicle Analysis: Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- Video Structuralization
- Structured Analysis: Up to 8-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis
- Face Picture Library: Up to 16 face picture libraries, with up to 100,000 face pictures in total
- Face Picture Comparison: 8-ch face picture comparison alarm
- Video and Audio
- IP Video Input: 32-ch；Up to 12 MP resolution
- *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output
- Video Output Mode: HDMI/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps)
- Synchronous playback: 16-ch
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Network
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection: 128
- Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Auxiliary Interface
- SATA: 4 SATA interfaces
- eSATA: 1 eSATA interface
- Capacity: Up to 10 TB capacity for each HDD
- Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/8
- General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 30 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 to 90 %
- Chassis: 19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H): 445 × 400 × 75 mm (17.5"× 15.7" × 3.0") ≤ 5 kg (11 lb)
- Certification
- Obtained Certification: CE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
- FCC: Part 15 Subpart B, ANSI C63.4
- CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4，EN 55035:2017
- Warranty: 1-year on part.
