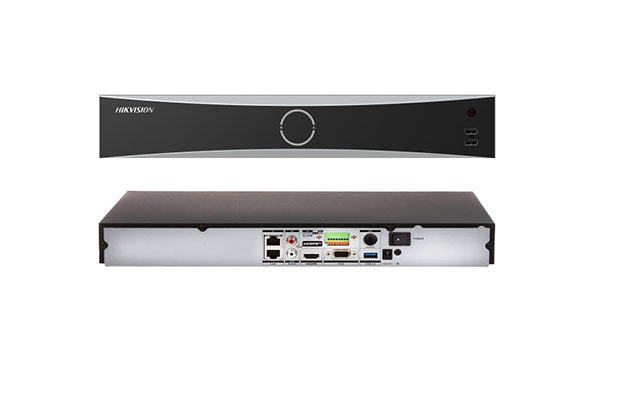

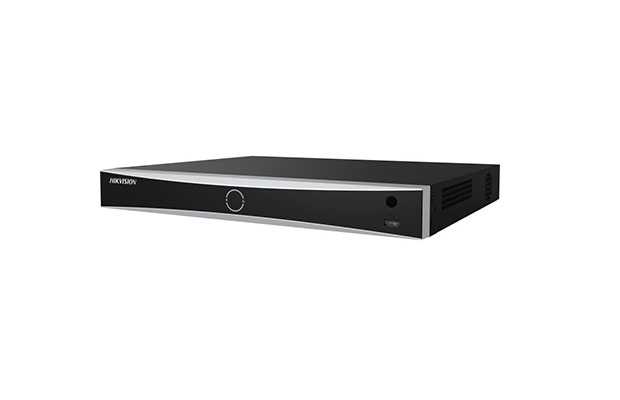

Hikvision iDS-7616NXI-I2/X 16-ch 1U 4K DeepinMind NVR
$498.00
- Part Number: iDS-7616NXI-I2/X
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 8-ch perimeter protection
- Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
- Up to 4-ch video structuralization
- Up to 16-ch IP cameras can be connected
- Up to 16-ch 1080p decoding capability
- Warranty: 1Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: iDS-7616NXI-I2/X
- Perimeter Protection
- Human/Vehicle Analysis: Up to 8-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- Video Structuralization
- Structured Analysis: Up to 4-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis
- Face Picture Library: Up to 16 face picture libraries, with up to 100,000 face pictures in total
- Face Picture Comparison: 8-ch face picture comparison alarm
- Throwing Objects from Building
- Capability: 8-ch, up to 2 MP
- Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library: Up to 16 face picture libraries, with up to 100,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Facial Detection and Analytics Performance: 8-ch 4 MP human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison: 16-ch face picture comparison alarm
- Video and Audio
- IP Video Input: 16-ch
- Up to 12 MP resolution
- *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Video Output Mode: HDMI/VGA independent output
- Decoding
- Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
- Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps)
- Synchronous playback: 16-ch
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Stream Type: Video, Video & Audio
- Dual-stream: Support
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
- Network
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection: 128
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 10 TB capacity for each disk
- Serial Interface: N/A
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 4/1
- General
- Power Supply: 12 VDC,3.33A
- Consumption: ≤ 40 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 385 × 315 × 52 mm ( 15.2"× 12.4" × 2.0") ≤ 1 kg (2.2 lb)
- Certification
- Obtained Certification: CE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN50130-4, EN 61000-3-2,EN 61000-3-3, EN55032:2015
- Warranty: 1Year on part.
