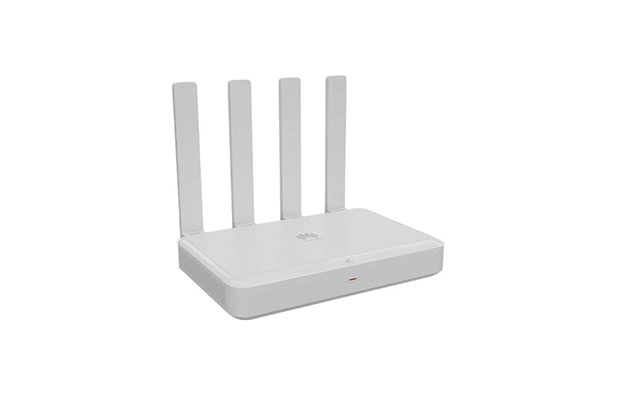

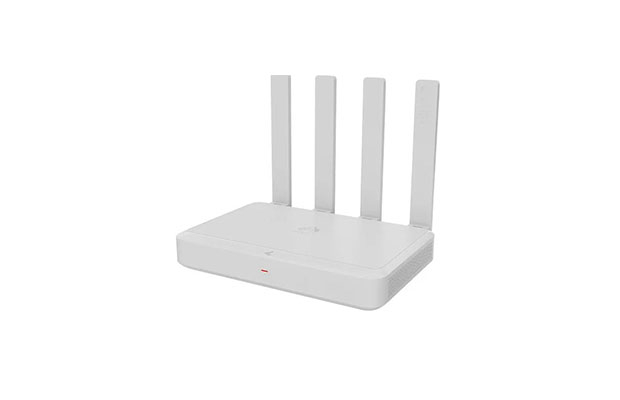

Huawei eKit AR180 3600Mbps Dual-Band Wi-Fi 7 Router
$79.00
- Part Number: eKit AR180
- Supports Wi-Fi 7 (802.11be), 20% faster than Wi-Fi 6
- Dual-band operation: 2.4 GHz and 5 GHz with 3600 Mbps total throughput
- Four external high-gain smart antennas with dynamic angle adjustment
- 2.5GE high-speed WAN/LAN port for 2000 Mbps broadband
- Supports Smart Mesh networking up to 8 devices and 20 m range
- Supports Application Control with over 500 recognized applications
- Warranty: 2 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: eKitEngine AR180
- Series: eKitEngine AR180 Series
- Wi-Fi Standard: 802.11b/g/n/ax/be (2.4 GHz); 802.11a/n/ac/ac wave2/ax/be (5 GHz)
- Frequency Bands: 2.4 GHz and 5 GHz
- Wi-Fi Speed: 3600 Mbps (0.69 Gbps at 2.4 GHz + 2.88 Gbps at 5 GHz)
- Antenna: Four external smart antennas (non-removable)
- Antenna Gain: 2.4 GHz – 3 dBi; 5 GHz – 4 dBi
- Maximum Transmit Power: 23 dBm
- MIMO: 2×2 on both 2.4 GHz and 5 GHz
- Maximum Connected Devices: AR180 ≤100
- Maximum Connected APs: 8
- Maximum Managed Devices: AR180 – 9
- Maximum IPSec Tunnels: AR180 – 8
- VPN Forwarding Performance: 200 Mbps
- Egress Bandwidth: 2 Gbps
- Ports: 1 × 2.5GE WAN/LAN, 1 × GE LAN, 3 × GE LAN/WAN
- Turbo Port: Dedicated (GE1 or 2.5GE1 depending on model)
- Power Supply: 110–220 V AC, 50/60 Hz
- Maximum Power Consumption: 13 W
- Operating Temperature: 0°C–40°C
- Storage Temperature: –40°C to +70°C
- Operating Humidity: 5%–95%, non-condensing
- Altitude: <5000 m
- Enclosure: Plastic (AR180)
- Dimensions (H × W × D): 35 × 195 × 130 mm
- Weight: 0.63 kg
