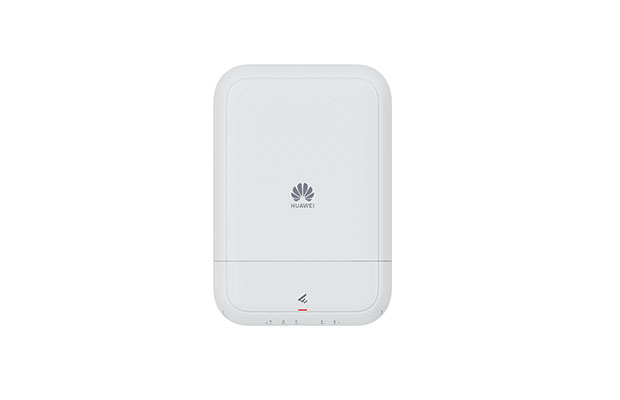

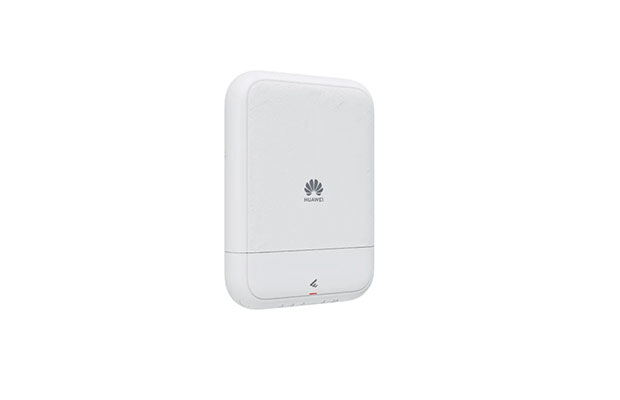

Huawei eKit AP771 3570Mbps Dual-Band Outdoor Wi-Fi 7 Wireless Access Point
$169.00
- Part Numer: eKit-AP771
- Out-door AP, Wi-Fi 7
- 3.57 Gbps device rate
- Dual-radio, 8 dBm transmit power
- 1 2.5 GE electrical port
- Smart antenna, P65
- 130m optimal coverage distance
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Model: eKitEngine AP771
- Standard: IEEE 802.11be (Wi-Fi 7), backward compatible with a/b/g/n/ac/ax
- Bands: 2.4 GHz (2×2) + 5 GHz (2×2)
- Maximum Rate: 3.57 Gbps (0.69 Gbps at 2.4 GHz + 2.88 Gbps at 5 GHz)

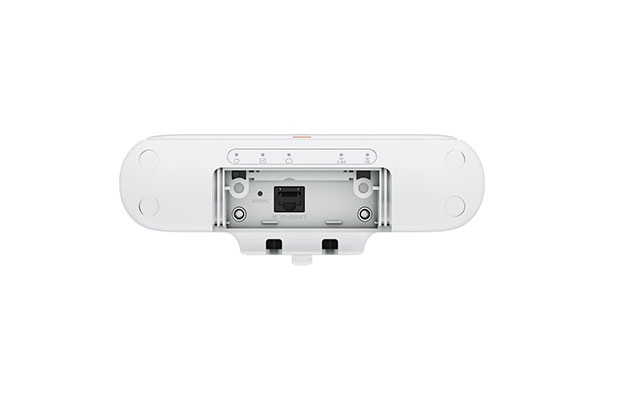

- Port: 1 × 2.5GE RJ45 (PoE IN, 100M/1000M/2500M auto-sensing)
- PoE Standard: IEEE 802.3af/at
- Maximum Power Consumption: 18.8 W
- Antenna Type: Built-in omnidirectional
- Antenna Gain: 2.4 GHz: 4 dBi; 5 GHz: 7 dBi
- Coverage Radius: Up to 130 m
- Protection: IP65 waterproof and dustproof, UV-proof PC material
- Surge Protection: 6 kA for Ethernet port
- Operating Temperature: –30°C to +60°C
- Storage Temperature: –40°C to +70°C
- Operating Humidity: 5%–95%
- Dimensions (H×W×D): 270 × 196 × 51 mm
- Weight: 1.14 kg
- Installation: Rail-mounted or latch-based; pole mount up to 114 mm
- Maximum Users: ≤ 256
- Maximum SSIDs per Radio: 10
- Security: WPA3-SAE, WPA2, 802.1X, DTLS, DHCP snooping, DAI, IPSG, PMF
- Management: Fit, Fat, and cloud management (via Huawei eKit App)
- Standards Compliance: IEEE 802.11a/b/g/n/ac/ax/be, UL/EN/IEC/CSA 62368-1, EN 301 893, EN 300 328, EN 55032, EN 62311, RoHS, Reach, WEEE
- Warranty: 2-years on part.
