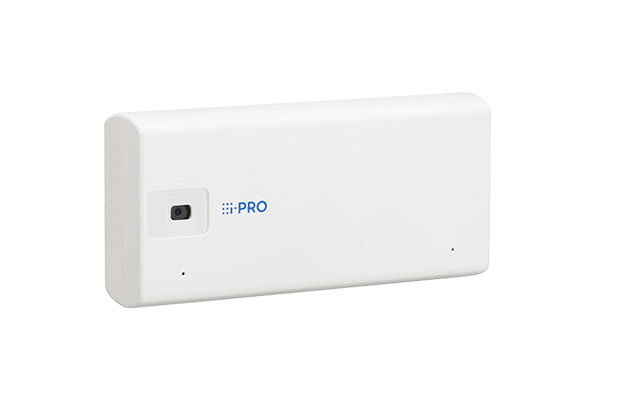

i-PRO WV-S71300A-F3 2MP(1080p) Indoor mini IP Camera with AI Engine
$795.00
- Part Number: WV-S71300A-F3
- Approx. 1/2.8 type CMOS image sensor
- 2MP (1080p) Indoor mini Box Network Camera with AI Engine
- 2MP Indoor mini box camera
- Up to 3 Edge AI analytic apps
- Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
- Warranty: 1-Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: WV-S71300A-F3
- Camera
- Image Sensor: Approx. 1/2.8 type CMOS image sensor
- Scanning Area: 5.57 mm (H) × 3.13 mm (V), {7/32 inches (H) × 1/8 inches (V)}
- Minimum Illumination Color : 0.21 lx (30IRE, F2.0, 1/30s, AGC:11)*; 0.3 lx (50IRE, F2.0, 1/30s, AGC:11); 0.019 lx (50IRE, F2.0, 16/30s, AGC:11)*
- Minimum Illumination BW : 0.2 lx (50IRE, F2.0, 1/30s, AGC:11); 0.013 lx (50IRE, F2.0, 16/30s, AGC:11)*, *Converted value
- White Balance: ATW1/ ATW2/ AWC
- Shutter Speed: [30 fps][15 fps], 16/30s Fix to 1/10000s, [25 fps][12.5 fps]< 16/25s Fix to 1/10000s
- Maximum Shutter: [30 fps mode] Max. 1/10000 s to Max. 16/30 s, [25 fps mode] Max. 1/10000 s to Max. 16/25 s, [15 fps mode] Max. 1/10000 s to Max. 16/30 s, [12.5 fps mode] Max. 1/10000 s to Max. 16/25 s
- Intelligent Auto: On / Off
- Adaptive Black Stretch: The level can be set in the range of 0 to 255.
- Back Light Compensation/High Light Compensation: BLC (Back light compensation) / HLC (High light compensation) /
- Off (only when intelligent Auto : Off)
- Fog Compensation: On / Off (only when Intelligent auto / auto contrast adjust : Off)
- Maximum gain (AGC): The level can be set in the range of 0 to 11.
- Color/BW (ICR): Auto/Off
- Light control mode setting: Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ELC
- Digital Noise Reduction The level can be set in the range of 0 to 255.
- Video Motion Detection (VMD): On / Off, 4 areas available
- Scene Change Detection (SCD): On / Off, 1 areas available
- Audio Detection: On / Off
- AI Sound Classification: Gunshot, Yell, Vehicle horn, Glass break
- AI Analytics: AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection,
- AI Analytics: AI Vehicle Detection, AI Non mask Detection (prior to V2.70), AI Occupancy Detection, AI Scene Change Detection, AI Processing Relay
- For details :
- - https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software
- - 3rd party applications are also available.
- - https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
- Privacy Zone: On / Off, Up to 8 zones available
- VIQS: On / Off, Up to 8 zones available
- Image Rotation: 0 ° / 90 ° / 180 ° / 270 °
- Camera Title (OSD): On / Off, Up to 40 characters Up to 2 lines (alphanumeric characters, marks)
- Lens
- Optical zoom: 1.0 x
- Extra zoom: 1.0 - 3.0 x (when resolution is 640 x 360)
- Focal length: 3.2 mm
- Angular Field of View: [16 : 9 mode] Horizontal : 81.1°, Vertical : 51.4°, [ 4 : 3 mode] Horizontal : 60.8°, Vertical : 51.4°
- Aperture: 1 : 2.0
- Focus range: 0.5 m to ∞
- DORI
- Detect (25ppm / 8ppf): 44.9 m / 147.2 ft
- Observe (62.5ppm / 19ppf): 18.0 m / 58.9 ft
- Recognize (125ppm / 38ppf): 9.0 m / 29.4 ft
- Identify (250ppm / 76ppf): 4.5 m / 14.7 ft
- System on Chip (SoC)
- System on Chip (SoC): Ambarella CV22
- OS Browser
- OS: Microsoft Windows 11, Microsoft Windows 10
- Browser Microsoft Edge, Firefox, Google Chrome
- Network
- Network IF: 10Base-T / 100Base-TX, RJ45 connector
- Resolution H.265/ H.264/ JPEG (MJPEG): [16:9 mode (30 fps mode)], [16:9 mode (25 fps mode)] 1920x1080, 1280x720, 640x360, 320x180
- [4:3 mode (30 fps mode)], [4:3 mode (25 fps mode)] 1280x960, 640x480, 320x240
- [4:3 mode (15 fps mode)], [4:3 mode (12.5 fps mode)] 2048x1536*4 , 1280x960, 640x480, 320x240
- H.265/H.264: [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort, [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
- JPEG: [Image Quality] 10 steps
- Smart Coding: GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/, Advanced(Fixed GOP 60s w/1s key-frame)/, Frame rate control (Variable GOP 4s-16s with frame rate control)
- *Advanced and Frame rate control are only available with H.265., Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
- Audio Compression: G.726 (ADPCM) : 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC*6 : 64 kbps / 96 kbps / 128 kbps
- Supported Protocol: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP
- IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP
- Security: User authentication, Host authentication, HTTPS
- No. of Simultaneous Users: Up to 14 users (Depends on network conditions)
- Secure: FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,
- HTTPS, User authentication, Digest authentication, Host authentication,
- IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware
- Multi-screen: Display 16 cameras simultaneously Supports only MJPEG/JPEG (still image update)
- microSD memory card: microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
- microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
- microSD memory card: 2 GB
- Mobile Terminal Compatibility: iPad, iPhone (iOS 8.0 ~), AndroidTM terminals, ONVIF® Profile G / M / S / T
- Input/Output
- Monitor Output: -
- Wi-Fi USB Adapter: Yes (for adjustment)
- General
- Safety: CE, IEC62368-1
- EMC: FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
- Power Source and Power Consumption: DC5 V(USB Type-C)(USB Power Delivery not supported), 1.5 A, Approx. 7.5 w
- Power Source and Power Consumption: PoE (IEEE802.3af compliant) Device : DC48 V 170 mA, Approx. 8.2 W(Class 0 device)
- Ambient Operating Temperature: -10 °C to +40 °C (14 °F to 104 °F), Power on : 0 °C ~ +40 °C (32 °F to 104 °F )
- Ambient Operating Humidity: 10 to 90 % (no condensation)
- Built-in microphone: Omnidirectional Electret Condenser Microphone x2
- USB port: High-speed serial interface (theoretical value: 480 Mbps), USB2.0 1 line
- Waterproof: IP44 (IEC 60529)
- Dimensions Without protective cover:
- - 102 mm (W) × 48 mm (H) × 21 mm (D)
- - {4-1/32 inches (W) × 1-7/8 inches (H) × 13/16 inches (D)}
- - (Depth when mounting seat is installed: +29.5 mm {+1-5/32 inches})
- - With protective cover
- - 103.5 mm (W) × 51 mm (H) × 24 mm (D)
- - {4-1/16 inches (W) × 2 inches (H) × 15/16 inches (D)}
- - (Depth when mounting seat is installed: +28 mm {+1-3/32 inches})
- Mass (approx.): Approx. 157 g (excluding the mounting base and protective cover)
- Mass (approx.): Approx. 169 g (excluding the mounting base, including the protective cover)
- Mass (approx.): Approx. 197 g (including mounting base and protective cover)
- Finish: PC resin, Aluminum die-casting, i-PRO white
