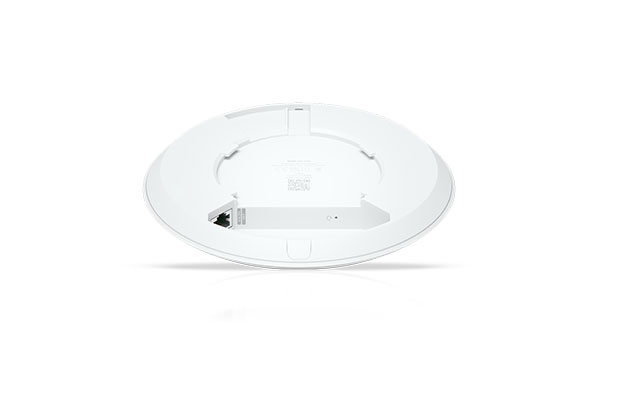

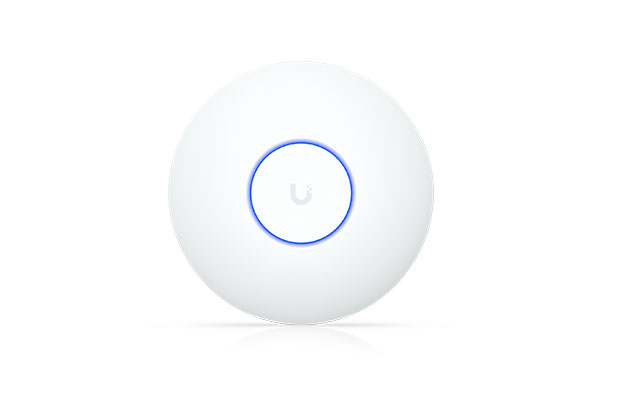

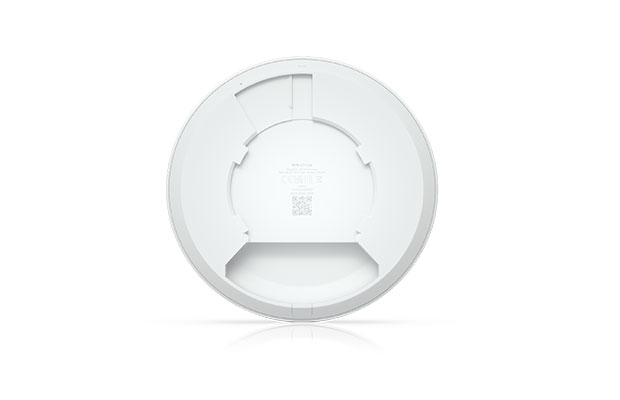

Ubiquiti UniFi U7-Lite Compact, ceiling-mounted WiFi 7 AP with 2.5GbE uplink
$145.00
- Part Number: U7-Lite
- Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
- Max client count: 200+
- Coverage Area: 115 m² (1,250 ft²)
- WiFi Standard: WiFi 7
- Uplink: 2.5GbE
- Warranty 1-Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: U7-Lite
- Overview
- Dimensions: ⌀171.5 x 33 mm (⌀6.8 x 1.3")
- WiFi Standard: WIFi 7
- Spatial Streams: 4
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 200+
- Uplink: 2.5 GbE

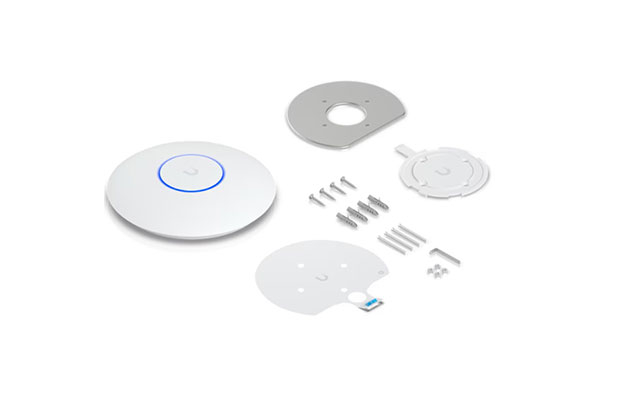

- Mounting: Ceiling, Wall (Lite Mount Included)
- Power Method: PoE
- Performance
- MIMO
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 5 GHz: 24 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware
- Max. Power Consumption: 13W
- Supported Voltage Range: 42.5–57V DC
- Networking Interface: (1) 2.5 GbE RJ45 port
- Weight: 313 g (11 oz)
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate
- Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)
- LEDs
- System: White/Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC, SRRC, Anatel: 02143-25-08356
- Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements
- UniFi Network: Version 9.0.114 and later
- Mobile App: iOS™ version 10.20.2 and later
- Android™ version 10.21.7 and later
- Warranty 1-Year on part.
