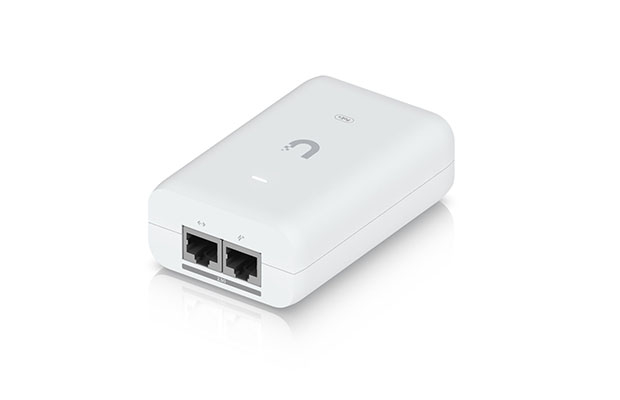

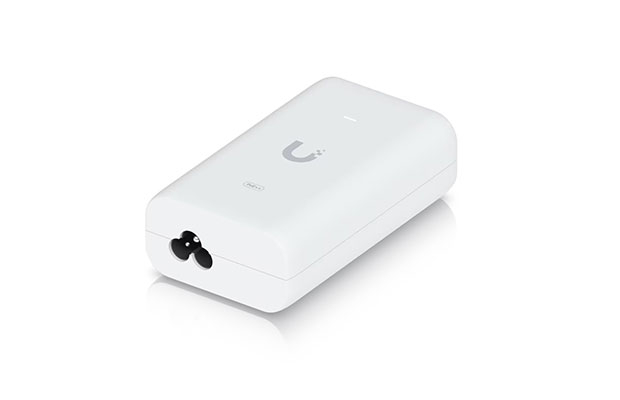

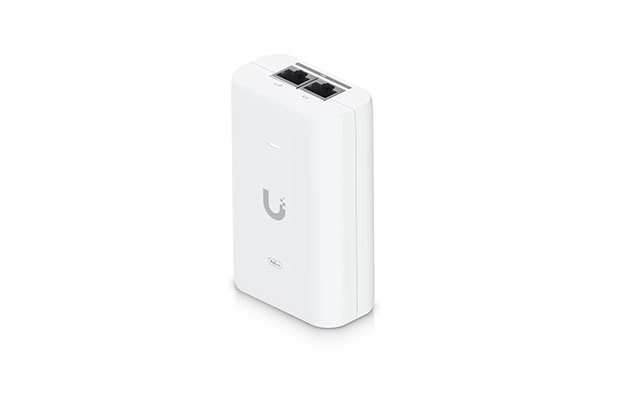

Ubiquiti UniFi (U-PoE++) PoE++ Adapter 48V (60W)
$46.00
- Part Number: U-PoE++
- U-PoE++ An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
- Delivers up to 60W of PoE++
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
- LED indicator for status monitoring
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: U-PoE++
- Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
- Weight: 210 g (7.4 oz)
- Output Voltage: 48V DC at 1.25A
- Rated Voltage: 100–240V AC at 50/60Hz
- LAN Activity Indicator: —
- Gigabit LAN Port: ✓
- Remote Reset Capability: —
- Reset Button: —
- 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- AC Connector: IEC-320 C6
- Clamping Protection: 11V Data, 60V power
- Data In / PoE: RJ45 Shielded Socket
- Input Current: 1.3A @ 120V AC
- Inrush Current: <100A peak @ 120V AC, <200A peak @ 230V AC
- Efficiency: 85+%
- Switching Frequency: 65 kHz
- Output Ripple: 1% Max.
- Line Regulation: ≤ 1%
- Load Regulation: ≤ 3%
- Max. PoE+ Wattage per Port by PSE: 60W
- Max. Surge Discharge: 1500A (8/20 μs) power
- Peak Pulse Current: 36A (10/1000 μs) data
- Power Method: Universal AC input, 100–240V AC, 50/60 Hz
- Power Supply: AC/DC
- Response Time: <1 ns
- Shunt Capacitance: <5 pF data
- Supported Voltage Range: 100–240V AC
- Surge Protection: Difference and common mode
- Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 10 to 95% noncondensing
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS.
