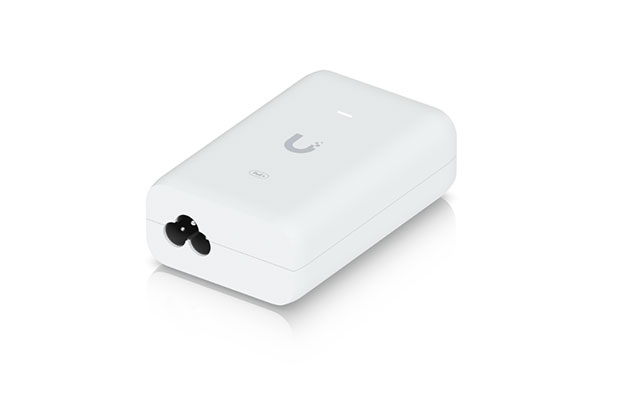

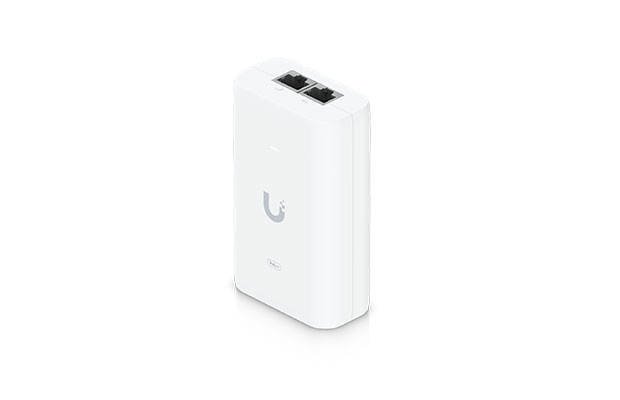

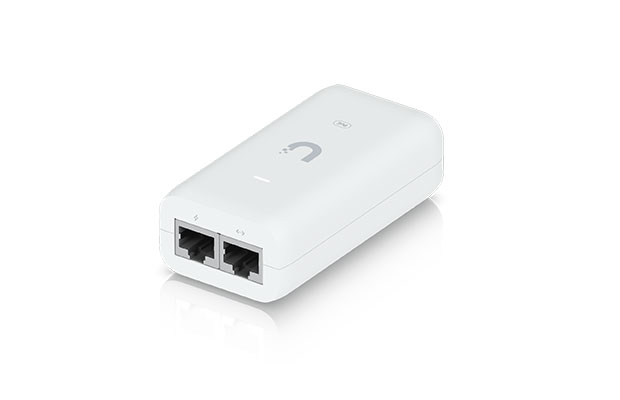

Ubiquiti UniFi (U-POE+) PoE+ Adapter 48V (30W)
$25.00
- Part Number: U-POE+
- U-POE+ Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other 802.3at devices
- Delivers up to 30W of PoE+
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: U-POE+
- Dimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
- Weight: 156 g (5.5 oz)
- Output Voltage: 48V DC @ 0.65A
- Rated Voltage: 100–240V AC at 50/60Hz
- LAN Activity Indicator: —
- Gigabit LAN Port: ✓
- Remote Reset Capability: —
- Reset Button: —
- 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
- AC Connector: IEC-320 C6
- Clamping Protection: 11V Data, 60V power
- Data In / PoE: RJ45 Shielded Socket
- Input Current: 0.75A Max.
- Inrush Current: <100A peak at 26°C
- Efficiency: 87%
- Switching Frequency: 70 kHz Max.
- Output Ripple: 1% Max.
- Line Regulation: ≤ 3%
- Load Regulation: ≤ 5%
- Max. Surge Discharge: 1500A (8/20 μs) power
- Peak Pulse Current: 36A (10/1000 μs) data
- Response Time: <1 ns
- Shunt Capacitance: <5 pF data
- Surge Protection: Difference and common mode
- Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 10 to 95% noncondensing
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC, UL, CCC
