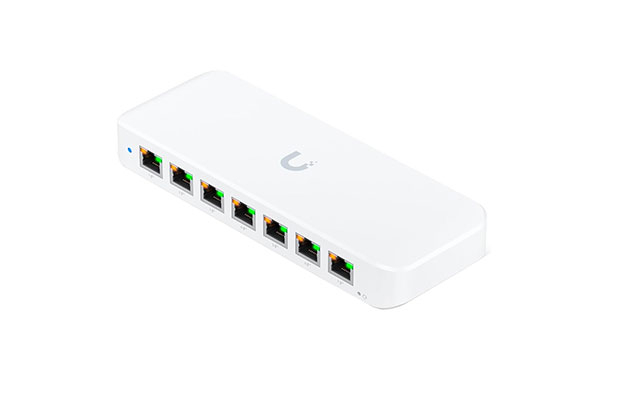

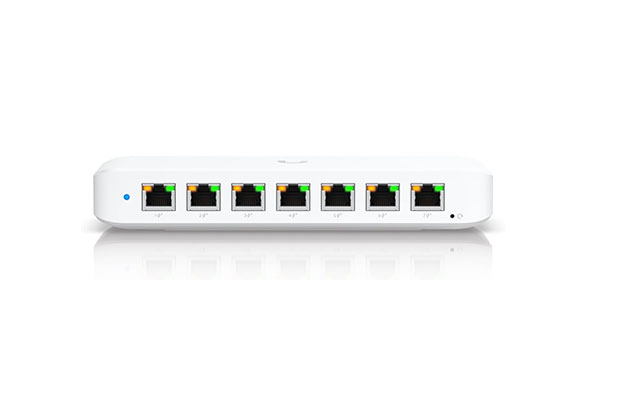

UniFi Switch Ultra 210W 8-Port Gigabit PoE Switch (USW-Ultra-210W)
$275.00
- Part number: USW-Ultra-210W
- 8-Port Gigabit PoE+
- 7x Gigabit Ethernet PoE+ Out Ports
- 1x Gigabit Ethernet PoE++ In Port
- 16 Gb/s Switching Capacity
- PoE budget of up to 202W
- Includes 210W Power Adapter
- Warranty: 1Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part number: USW-Ultra-210W
- A compact, Layer 2, 8-port GbE PoE switch
- Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")
- 1 GbE RJ45: 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
- Max. PoE Output: Up to PoE+
- Total PoE Availability:
- - PoE++ input: 42W
- - PoE+ input: 16W
- - 60W PoE adapter input: 42W
- - 60W AC adapter input: 52W
- - 210W AC adapter input: 202W
- Form Factor: Compact desktop, wall, magnetic
- Switching Capacity: 16 Gbps
- Total Non-Blocking Throughput: 8 Gbps
- Forwarding Rate: 12 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- PoE+: 7 PoE Ports
- PoE++: 1 PoE Ports
- Max. PoE Wattage per Port by PSE PoE+: 30W
- Max. Power Consumption:
- - 9W (Excluding PoE Output) with PoE input
- - 8W (Excluding PoE Output) with adapter input
- - 210W (Including PoE Output) with 210W AC adapter input
- Power Method: (1) AC/DC adapter (Included), (1) PoE++
- Power Input Method: DC Input, PoE
- Power Supply: AC/DC, external, 210W
- Supported Voltage Range: 50–57V DC/PoE
- Management: Ethernet
- Heat Dissipation: 31 BTU/hr (Excluding PoE Output)
- Weight:
- - Device: 320 g (11.3 oz)
- - Wall mount: 45 g (1.6 oz)
- - Adapter: 770 g (1.7 lb)
- Enclosure Material: Polycarbonate
- Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F)
- Ambient Operating Temperature: 210W AC adapter input: -20 to 60° C (-4 to 140° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC, Anatel: 06367-24-08356
- Warranty: 1Years on part.
