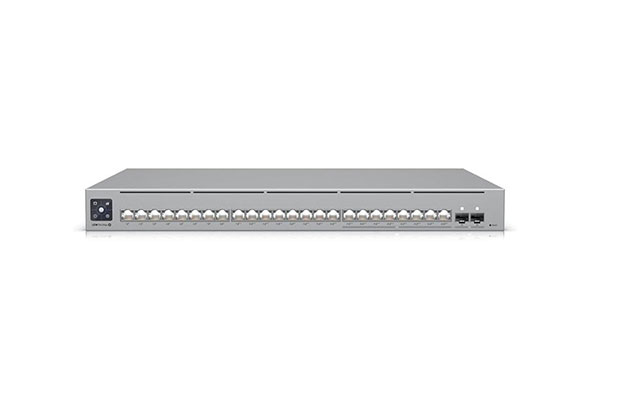

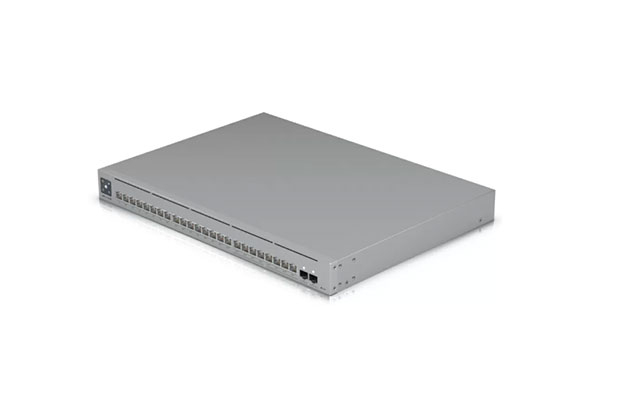

Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE) with 16GbE PoE 8x 2.5Gbps PoE++
$1,079.00
- Part Number: USW-Pro-Max-24-PoE
- 16x Gigabit PoE Ports (8x PoE++ and 8x PoE+)
- 8x 2.5Gbps PoE++ ports
- 2x 10G SFP+ uplink Ports
- Total PoE Availability: 400W
- Layer 3 Etherlighting™ switch capable of high-power PoE++ output
- Warranty: 1Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: USW-Pro-Max-24-PoE
- General
- Dimensions 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
- Weight Without mounting brackets: 5.1 kg (11.3 lb)
- With mounting brackets: 5.2 kg (11.5 lb)
- Enclosure material SGCC steel
- Hardware
- Management interface Ethernet In-Band
- Networking interface (16) GbE RJ45 ports
- (8) 1/2.5 GbE RJ45 ports
- (2) 10G SFP+ ports
- PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
- Total non-blocking throughput 56 Gbps
- Switching capacity 112 Gbps
- Power method Universal input, 100—240V AC, 50/60 Hz
- USP RPS DC input
- Power supply AC/DC, internal, 450W
- Supported voltage range 100—240V AC
- Max. power consumption 50W (Excluding PoE output)
- Total available PoE 400W
- Max. PoE wattage per port by PSE PoE: 15.4W
- PoE+: 30W
- PoE++: 60W
- Voltage range PoE mode PoE: 44—57V
- PoE+: 50—57V
- LCM display (1) 1.3" touchscreen
- Button Factory reset
- Operating temperature -5 to 40° C (23 to 104° F)
- Operating humidity 10 to 90% noncondensing
- Certifications CE, FCC, IC
- Warranty: 1Years on part.
