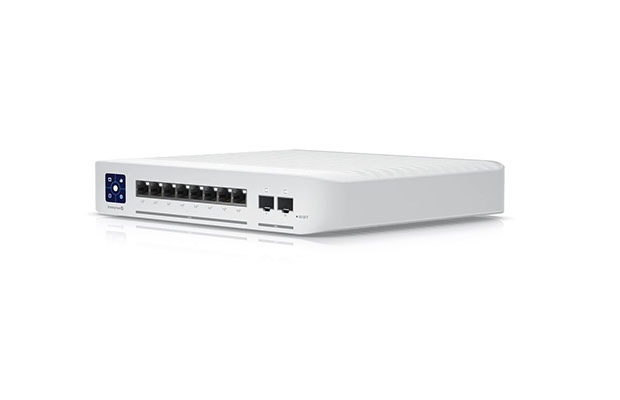

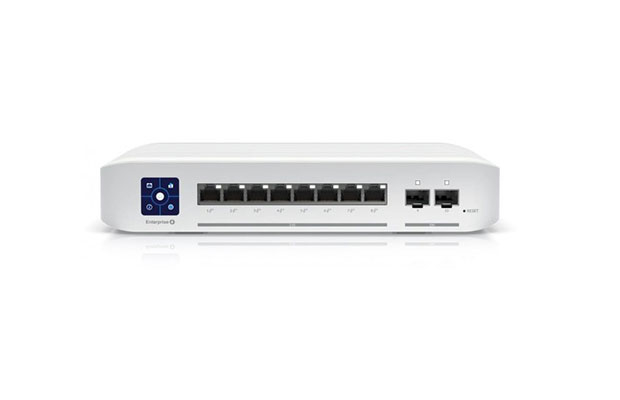

Ubiquiti 8Port PoE Layer3 switch with 2.5GbE PoE+ output (USW-Enterprise-8-POE)
$619.00
- Part Number: USW-Enterprise-8-POE
- Layer 3 switch with 2.5 GbE PoE+ output
- 2.5 GbE RJ45: 8x (All PoE+) (2.5G/1G/100M)
- 10G SFP+: 2x (10G/1G)
- Total PoE Availability: 120W
- Form Factor: Compact desktop
- Weight: 2.4 kg
- Warranty: 1-Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: USW-Enterprise-8-POE
- Overview
- Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
- Port Layout:
- 2.5 GbE RJ45: 8x (All PoE+) (2.5G/1G/100M)
- 10G SFP+: 2x (10G/1G)
- Max. PoE Output: Up to PoE+
- Total PoE Availability: 120W
- Layer 3: ✓
- Form Factor: Compact desktop
- Performance
- Switching Capacity: 80 Gbps
- Total Non-Blocking Throughput: 40 Gbps
- Forwarding Rate: 60 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- L3 Table Size:
- ARP Entries: 512
- IPv4 Routes: 512
- IPv4 Static Routes: 256
- Packet Buffer Size: 1.5 MB
- Access Lists
- IPv4: 12
- MAC: 10
- Hardware
- PoE Ports:
- PoE+: 8
- Max. PoE Wattage per Port by PSE
- PoE+: 32W
- Max. Power Consumption: 30W (Excluding PoE Output)
- Max. Power Consumption: 150W (Including PoE Output)

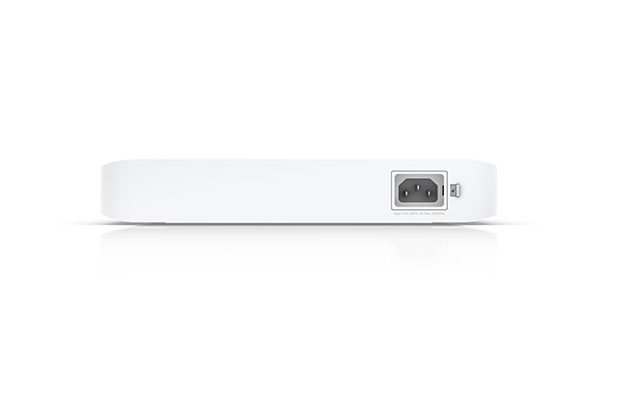

- Power Method: Universal input, 100–240V AC, 50/60 Hz
- Power Input Method: AC input
- Power Supply: AC/DC, internal, 150W
- Supported Voltage Range: 100–240V AC
- Management: Ethernet, AR
- Heat Dissipation: 102.4 BTU/hr (Excluding PoE Output)
- Weight: 2.4 kg (5.3 lb)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Supported Rack Depth: 400~1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Air: ± 16kV, contact: ± 12kV
- Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC, Anatel: 06645-23-08356
- Software
- Application Requirements:
- UniFi Network: Version 6.3.51 and later
- Warranty: 1-Years on part.
