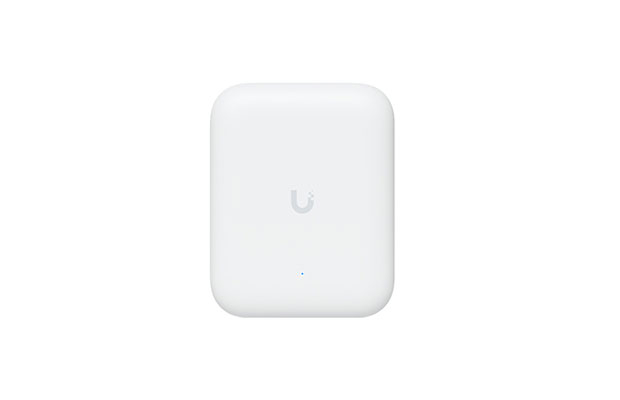

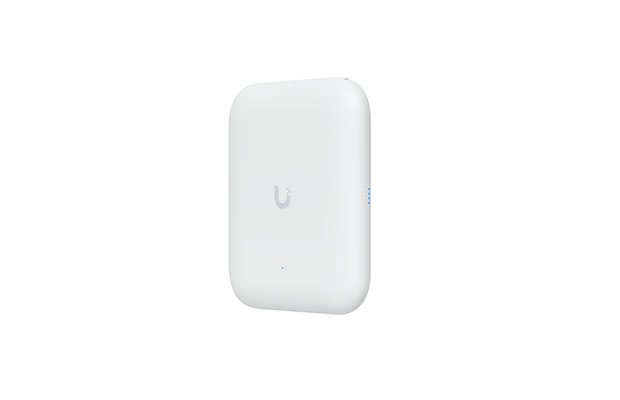

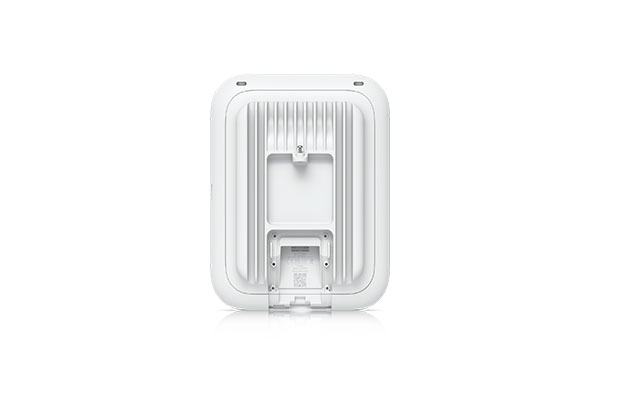

Ubiquiti UniFi U7-Pro-Outdoor All-weather IP67 WiFi 7 Access Point
$389.00
- Part Number: U7-Pro-Outdoor
- All-weather IP67 WiFi 7 AP with 6 spatial streams
- Extended-range AFC 6 GHz support
- Integrated directional super antenna
- 300+ connected devices
- Mesh Signal LEDs
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: U7-Pro-Outdoor
- Overview
- Dimensions:
- -Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
- -With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
- WiFi Standard: WiFi 7
- Spatial Streams: 6
- Coverage Area: 465 m² (5,000 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE
- Mounting: Wall, Pole (Mounts Included)
- Weatherproofing: IPX6
- IP67 (With cable-gland door kit)
- Power Method: PoE+
- Performance
- MIMO
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate:
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain:
- 6 GHz: Directional internal: 10 dBi, 90° x 45°
- 5 GHz: Directional internal: 11 dBi, 90° x 45°
- External omni: 8 dBi, 360° x 15°
- 2.4 GHz: Directional internal: 8 dBi, 90° x 90°
- 2.4 GHz: External omni: 6 dBi, 360° x 15°
- Max. TX Power:
- 6 GHz: 26 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates:
- 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware
- Max. Power Consumption: 21W
- Supported Voltage Range: 42.5—57V DC
- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Weight:
- - Device: 1.2 kg (2.6 lb)
- - With mount: 1.33 kg (2.9 lb)
- Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
- Pole Mount Diameter: 1–2.5" (25–63.5 mm)
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
- Mount Material: UV-stabilized polycarbonate
- LEDs:
- System: (1) Power: White/Blue
- System: (4) Mesh signal: Blue
- NDAA Compliant: ✓
- Certifications: FCC, IC
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements
- UniFi Network: Version 9.0.114 and later
- Mobile App: iOS™ version 10.20.2 and later
- - Android™ version 10.21.7 and later
- Warranty: 1 Year on part.
