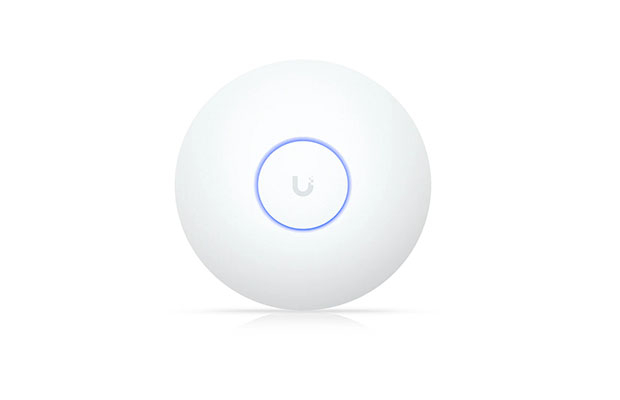

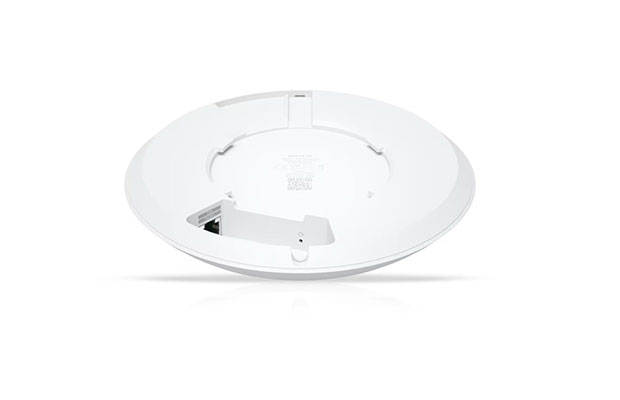

Ubiquiti U7 Long-Range (U7-LR) Compact, ceiling-mount WiFi 7 Access Point
$225.00
- Part Number: U7-LR
- Compact, ceiling-mount WiFi 7 AP
- 5 spatial streams and extended signal range.
- Coverage Area: 160 m² (1,750 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE
- Warranty: 3-Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: U7-LR
- Overview
- Dimensions: ⌀175.7 x 43 mm (⌀6.9 x 1.7")
- WiFi Standard: WiFi 7
- Spatial Streams: 5
- Coverage Area: 160 m² (1,750 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE
- Mounting: Ceiling, Wall (Plastic Mounting Plate included)
- Power Method: PoE
- Performance
- MIMO
- 5 GHz: 3 x 3 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.3 Gbps (BW160)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 5 GHz: 6 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 5 GHz: 27 dBm
- 2.4 GHz: 26 dBm
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
- Hardware
- Max. Power Consumption: 14W
- Includes PoE Adapter: —
- Supported Voltage Range: 42.5–57V DC
- Networking Interface: (1) 2.5 GbE RJ45 port
- Weight: 448 g (15.8 oz)
- Management: Ethernet
- Enclosure Material: Polycarbonate, aluminum alloy
- Mount Material: Polycarbonate, galvanized steel (SGCC)
- LEDs
- System: White/Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC, SRRC, Anatel: 04071-25-08356
- Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements
- UniFi Network: Version 9.1.120 and later
- Mobile App
- iOS™ version 10.20.2 and later
- Android™ version 10.21.7 and later
- Warranty: 3-Years on part.
