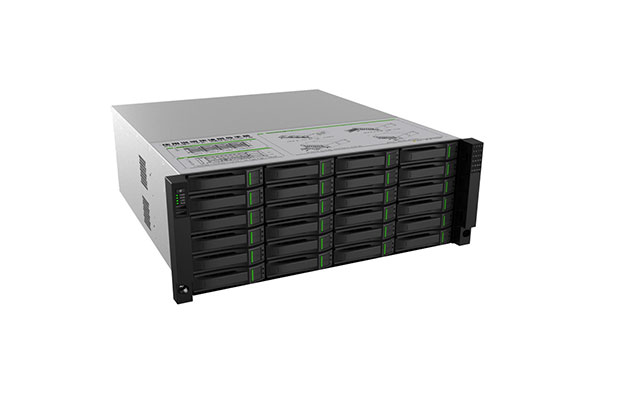

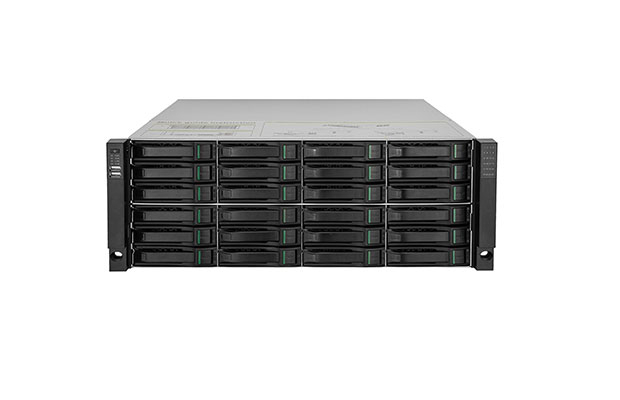

Tiandy TC-R324160 80-ch 24HDDs IP Network Video Recorder (NVR)
$2,065.00
- Part Number: TC-R324160
- 160-ch, 800Mbps/400Mbps
- 24HDD, recording resolution up to 16MP
- Decoding ability 16MP*3,12MP*4,8MP*6,6MP*8,5MP*9,4MP*12,3MP*16,1080P*16,720P*16
- video output: 2 HDMI & 1VGA non-simultaneous output, alarm I/O 16/8
- USB interface: 1xUSB 3.0 2xUSB 2.0
- RAID: JBOD,RAID0/1/5/6/10/50/60
- ANR，redundant power supply
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TC-R324160
- TC-R324160 Spec:E/B/N/V4.1
- 160-ch, 800Mbps/400Mbps
- 24HDD, recording resolution up to 16MP
- Decoding ability 16MP*3,12MP*4,8MP*6,6MP*8,5MP*9,4MP*12,3MP*16,1080P*16,720P*16
- Video: S+265; H.265; S+264; H.264
- Audio: G711A; G711U; AAC; ADPCM_DIV4
- Stream Type: Video; Video & Audio
- Video output: 2 HDMI & 1VGA non-simultaneous output
- Alarm I/O 16/8
- USB interface: 1xUSB 3.0 2xUSB 2.0
- 4× RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- 24× SATA interface
- RAID: JBOD,RAID0/1/5/6/10/50/60
- ANR，redundant power supply
- Power Supply: 100~240V AC
- Power Consumption: <45W(HDD not included, idling)
- Boundary Dimensions: 530(L)484.5(W)174.5(H)mm
- Package Dimensions: 780(L)710(W)330(H)mm
- Operating Temperature: -10℃~+55℃ (+14℉~+131℉)
- Operating Humidity: 10%~90%RH (non-condensing)
- Storage Temperature: -20℃~+60℃ (-4℉~+140℉)
- NetWeight: 15.2Kg
- GrossWeight: 20Kg
