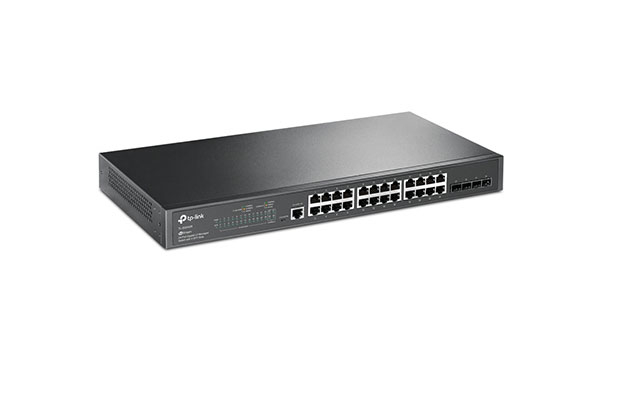

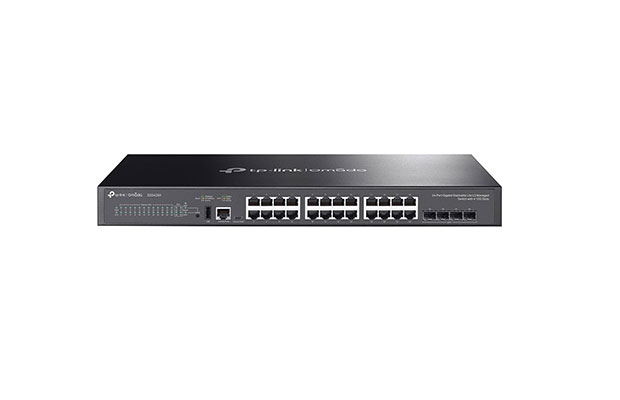

TP-Link SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
$300.00
- Part Number: SG5428X
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
- Warranty: 3 years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- interface:
- • 24× 10/100/1000 Mbps RJ45 ports
- • 4× 1/10 Gbps SFP+ slots*
- • 1× USB 2.0 port
- • 1× RJ45 console port
- • 1× USB Type-C console port
- Number of fans: Fanless
- Power supply: 100-240 V~50/60 Hz
- Dimensions (W*D*H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
- Assembly: Rackmountable
- Maximum power consumption:
- • 19.6 W (220V/50Hz @ 25 °C)
- • 19.9 W (110V/60Hz @ 25 °C)
- Maximum heat output:
- • 66.87 BTU/hr (220V/50Hz @ 25°C)
- • 67.86 BTU/hr (110V/60Hz @ 25°C)
- PERFORMANCE
- Switching capacity: 128 Gbps per unit
- Stacking:
- • Stacking Number: 4
- • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
- • Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
- Packet forwarding rate: 95.23 MPps
- MAC address table: 16K
- Packet buffer memory: 12 Mbps
- Jumbo frames: 9 KB
- SOFTWARE FEATURES
- Quality of Service:
- • Class of Service
- - 8 Queues of Priority
- - Port Priority
- - IEEE 802.1p Priority
- - DSCP Priority
- - Queue Min-Bandwidth
- - Schedule Mode (SP, WRR, SP+WRR)
- • Bandwidth Control
- - Rate Limit
- - Storm Control
- • Voice VLAN
- • User-Defined OUI
- • Smoother Performance
- • Action for Flows
- - QoS remark (802.1P Remark, DSCP Remark)
