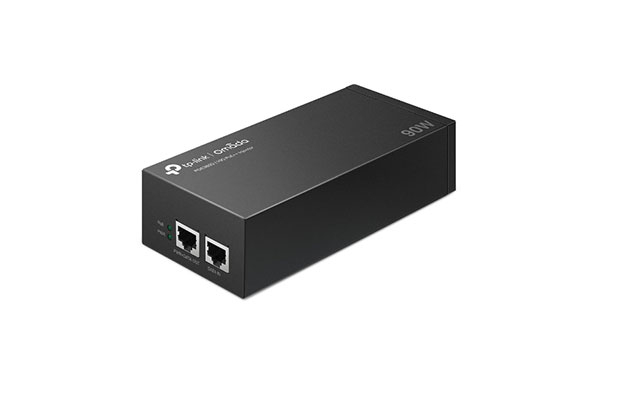

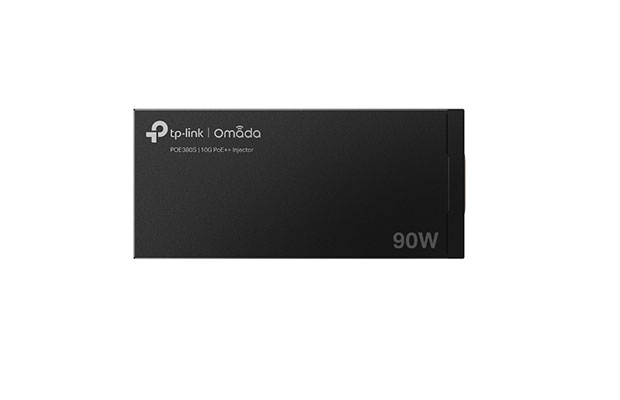

TP-Link POE380S Omada PoE++ Injector (up to 90W)

$55.00

Part Number: POE380S
2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, no configuration required
Integrated power supply
Durable metal casing

Contact for Price & Stock

Delivery 25 Provinces

Official Warranty

100% Genuine Product

Tech Support

Specifications

Part Number: POE380S
HARDWARE FEATURES
Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
Interface
-1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port
-1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W)
-1× AC socket
Network Media : 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m): 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m): 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Max. Power Consumption:
- Input: 100-240 V, 50/60 Hz, 1.6A
- Output: Auto-determine the necessary power requirements (max. 90 W)
Basic Function:
- Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
- Auto-determine the necessary power requirements
- Wall-mounting and desktop installation
- Plug-and-Play
LED: Power / PoE
Dimensions ( W x D x H ): 6.1*2.8*1.7 in (155*70*42 mm)
OTHERS
Certification: FCC, CE, RoHS
Package Content
- POE380S
- Power Cord
- Installation Guide
Environment
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90%RH non-condensing
- Storage Humidity: 5% to 90%RH non-condensing
