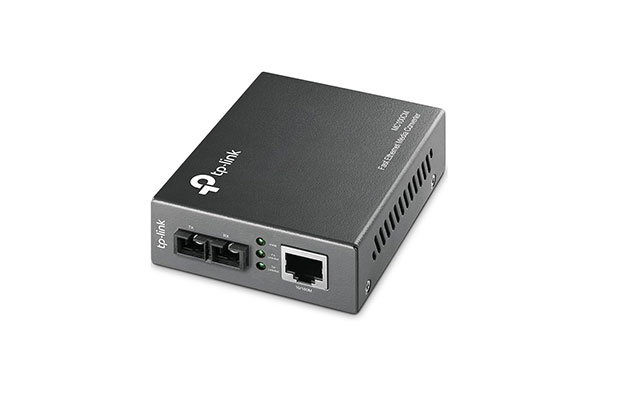

TP-Link MC110CS 10/100Mbps Single-Mode Media Converter
$17.00
- Part Number: MC110CS
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 20km
- Warraty: 3-years on port.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: MC110CS
- MEDIA CONVERTER & MODULE
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- *Basic Function
- - Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- - Full Duplex Flow Control (IEEE 802.3x)
- - Half Duplex Flow Control (Backpressure)
- - Extends fiber distance up to 20km
- *Interface
- - 2× 100M SC/UPC ports
- - 1× 10/100M RJ45 port (Auto MDI/MDIX)
- Wave Length: 1310nm
- Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- Network Media 10BASE-T: EIA/TIA-568 100Ω STP (maximum 100m)
- Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m)
- Network Media 100BASE-T: EIA/TIA-568 100Ω STP (maximum 100m)
- Network Media 100BASE-FX: Single-mode Fiber
- Dimensions ( W x D x H ): 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
- Power Supply: External power supply
- Max. Power Consumption: 2.4W
- LED: PWR, Link/Act
- Safety & Emission: FCC, CE, RoHS
- *Package Content:
- - MC110CS
- - Power Adapter
- - Installation Guide
- *Environment:
- - Operating Temperature: 0℃~50℃ (32℉~122℉)
- - Storage Temperature: -40℃~70℃ (-40℉~158℉)
- - Operating Humidity: 10%~90% non-condensing
- - Storage Humidity: 5%~90% non-condensing
