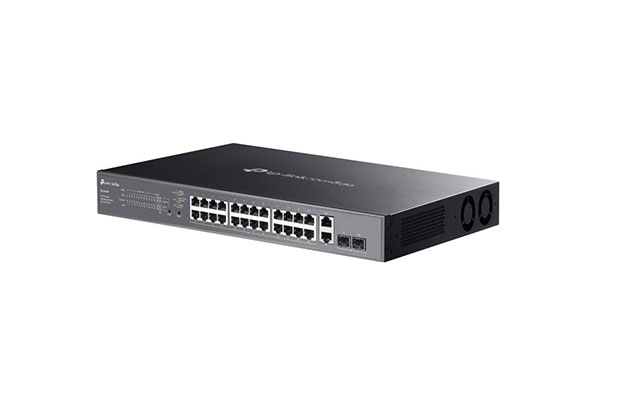

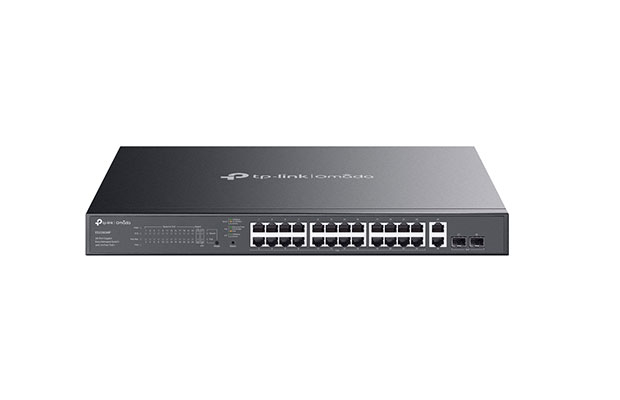

TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
$269.00
- Part Number: ES228GMP
- 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP slots
- 384W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada App†
- Up to 820ft PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
- Warranty 3Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: ES228GMP
- HARDWARE FEATURES
- Interface:
- - 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
- - 2× 10/100/1000 Mbps RJ45 Port
- - 2× Gigabit SFP Slots
- - Auto-Negotiation/Auto MDI/MDIX
- Fan Quantity: 2
- Installation: Desktop/Rack Mounting
- Physical Security Lock: √
- Power Supply: 100–240V AC, 50/60Hz
- PoE Ports (RJ45):
- - Standard: 802.3af PoE and 802.3at PoE+ compliant
- - PoE Ports: 24 ports
- - PoE Budget: 384W available for all PoE+ ports, 30W max per port
- - Fast PoE & Perpetual PoE
- - PoE Auto Recovery‡
- - Up to 820ft PoE transmission distance**
- Jumbo Frame: 15 KB
- Weight: Net 5.0 kg (11.0 lbs)
- Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
- Surge Protection: ±6 kV in common mode for Ethernet Ports
- Max. Power Consumption: 454.8 W (110V/60Hz) (with 384 W PD connected)
- PERFORMANCE
- Packet Buffer Memory: 4 Mbit
- Jumbo Frame: 15 KB
- Transmission Method: Store and Forward
- Switching Capacity: 56 Gbps
- Packet Forwarding Rate: 41.66 Mpps
- MAC Address Table: 8K
- SOFTWARE FEATURES
- Quality of Service
- - Port-based/802.1p/DSCP QoS
- - 8 Priority Queues
- - Priority Schedule Mode
- - WRR (Weighted Round Robin)
- - Queue Weight Config
- - Bandwidth Control
- - Port-Based Rating Limit
- - Storm Control
- - Multiple Control Modes (kbps/pps)
- - Broadcast/Multicast/Unknown-Unicast Control△
- L2 Features:
- - Static Link Aggregation
- - Loop Prevention / Loopback Detection
- - Flow Control
- - 802.3x Flow Control
- - Mirroring
- - Port Mirroring
- - One-to-One
- - Many-to-One
- - Ingress/Egress/Both
- - Port Statistics
- - Port Mirror Status
- - Traffic Statistics
- - 802.1ab LLDP
- L2 Multicast:
- - IGMP Snooping
- - IGMP v1/v2/v3 Snooping
- - Fast Leave
- VLAN
- - MTU VLAN
- - Port-Based VLAN
- - 802.1Q Tag VLAN
- - Max 32 VLAN Groups
- - 4K VID
- Transmission Method: Store-And-Forward
- Management Features:
- Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management
- - Omada Cloud-Based Controller
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
- Management Features
- - Web-based GUI
- - DHCP Client
- - Cable Diagnostics
- - Automatic Device Discovery†
- - Batch Configuration†
- - Batch Firmware Upgrading†
- - Unified Configuration†
- OTHERS
- Certification: FCC, CE, RoHS
- Package Content
- - ES228GMP
- - Power Cord
- - Mounting Brackets
- - Rubber Feet
- - Screws
- - Installation Guide
- Environment
- - Operating Temperature: -5℃~45℃ (23℉~113℉)
- - Storage Temperature: -40℃~70℃ (-40℉~158℉)
- - Operating Humidity: 10%~90% non-condensing
- - Storage Humidity: 5%~90% non-condensing
- ESD/EMP Protection: Air: ±8 kV, Contact: ±4 kV
- Warranty 3Years on part.
