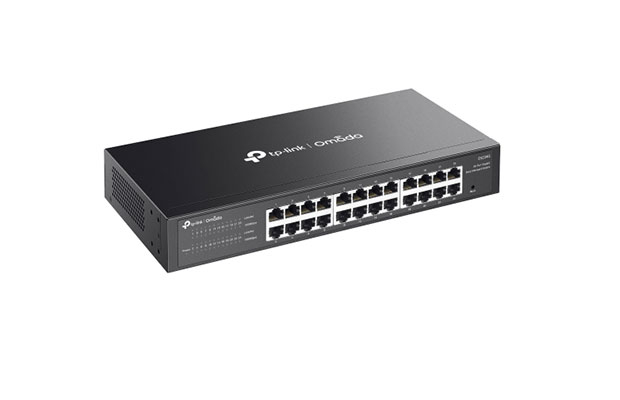

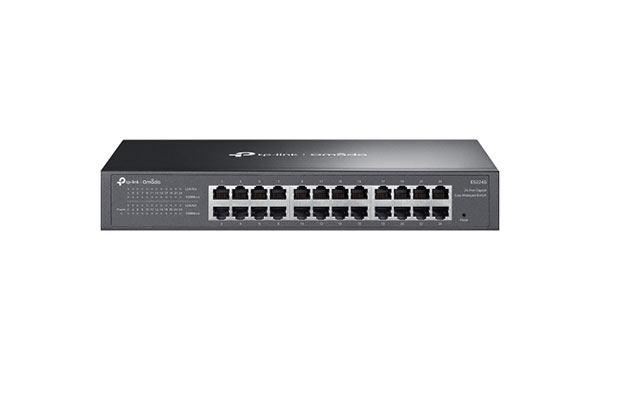

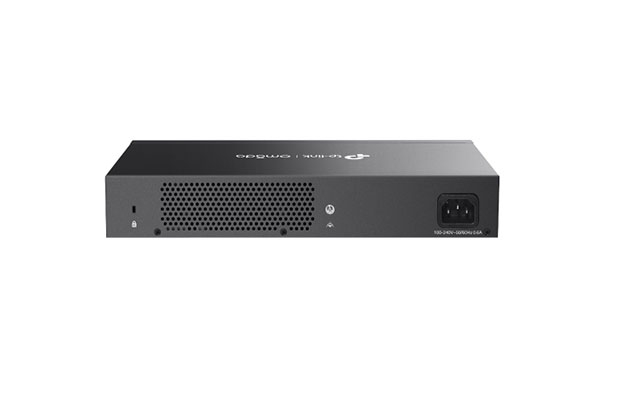

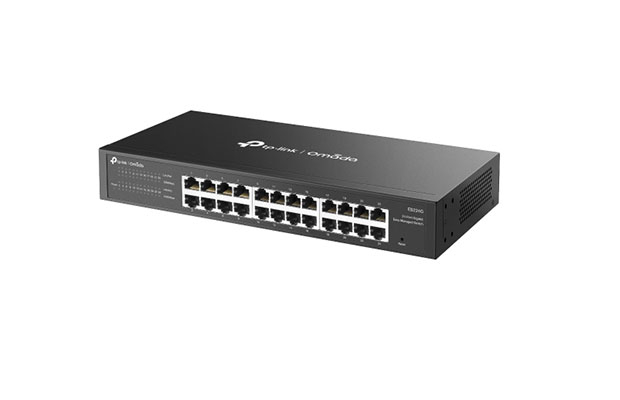

TP-Link ES224G Omada 24-Port Gigabit Easy Managed Switch
$175.00
- Part Number: ES224G
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
- Warranty: 3-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: ES224G
- HARDWARE FEATURES
- Interface
- - 24× 10/100/1000 Mbps RJ45 Ports
- - Auto-Negotiation/Auto MDI/MDIX
- Fan Quantity: Fanless
- Installation: Desktop & Rackmountable
- Physical Security Lock: √
- Power Supply: 100-240 V~50/60 Hz
- Dimensions ( W x D x H ): 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)
- Surge Protection: ±6kV
- PERFORMANCE
- Switching Capacity: 48 Gbps
- Packet Forwarding Rate: 35.7 Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4 Mbit
- Jumbo Frame: 15 KB
- SOFTWARE FEATURES
- Quality of Service:
- - Port-based/802.1p/DSCP QoS
- - 8 Priority Queues
- - Priority Schedule Mode
- - WRR (Weighted Round Robin)
- - Queue Weight Config
- - Bandwidth Control
- - Port-Based Rating Limit
- - Storm Control
- - Multiple Control Modes (kbps/pps)
- - Broadcast/Multicast/Unknown-Unicast Control△
- L2 Features:
- - Static Link Aggregation
- - Loop Prevention / Loopback Detection
- - Flow Control
- - 802.3x Flow Control
- - Mirroring
- - Port Mirroring
- - One-to-One
- - Many-to-One
- - Ingress/Egress/Both
- - Port Statistics
- - Port Mirror Status
- - Traffic Statistics
- - 802.1ab LLDP
- L2 Multicast:
- - IGMP Snooping
- - IGMP v1/v2/v3 Snooping
- - Fast Leave
- VLAN:
- - MTU VLAN
- - Port-Based VLAN
- - 802.1Q Tag VLAN
- - Max 32 VLAN Groups
- - 4K VID
- Transmission Method: Store-And-Forward
- Management Features:
- Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management:
- - Omada Cloud-Based Controller
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
- Management Features:
- - Web-based GUI
- - DHCP Client
- - Cable Diagnostics
- - Automatic Device Discovery†
- - Batch Configuration†
- - Batch Firmware Upgrading†
- - Unified Configuration†
- OTHERS
- Certification: FCC, CE, RoHS
- Package Content:
- - ES224G
- - Power Cord
- - Rubber Feet
- - Mounting Brackets
- - Screws
- - Installation Guide
- Environment:
- - Operating Temperature: -5℃~50℃ (23℉~122℉)
- - Storage Temperature: -40℃~70℃ (-40℉~158℉)
- - Operating Humidity: 10%~90% non-condensing
- - Storage Humidity: 5%~90% non-condensing
- Warranty: 3-years on part.
