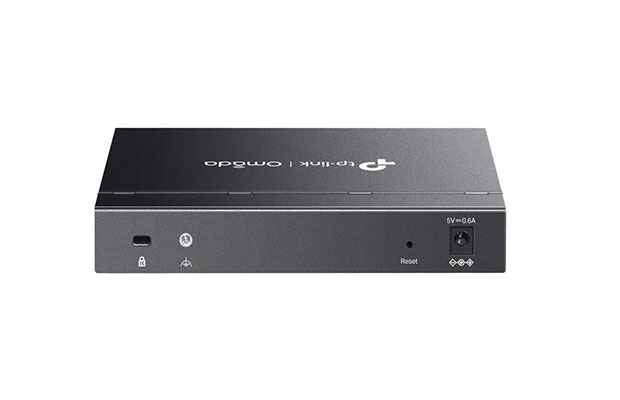

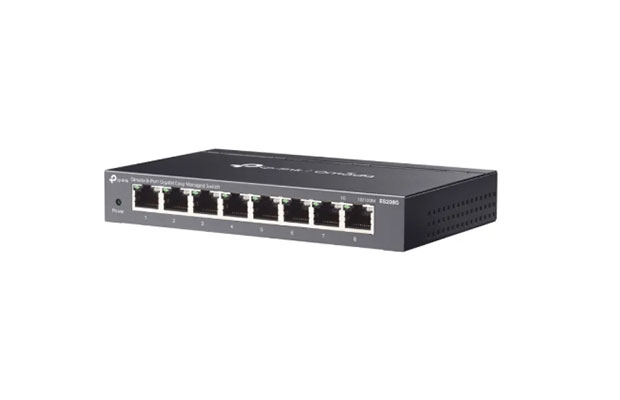

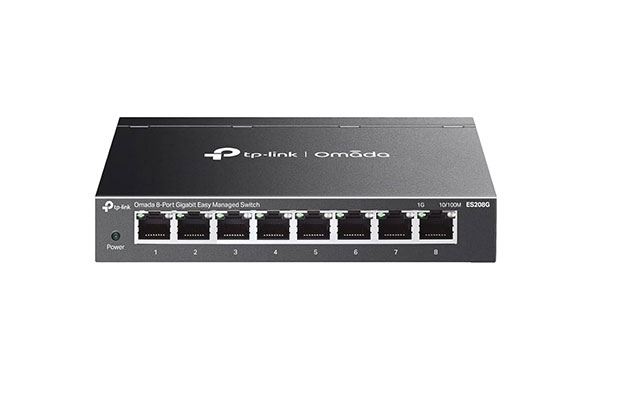

TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch
$23.00
- Part Number: ES208G
- 8× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
- Warranty 3Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: ES208G
- HARDWARE FEATURES
- Interface
- - 8× 10/100/1000 Mbps RJ45 Ports
- - Auto-Negotiation/Auto MDI/MDIX
- Fan Quantity: Fanless
- Installation
- - Desktop
- - Wall Mounting
- Physical Security Lock √
- Power Supply: DC Power Adapter (Output: 5V DC / 0.6A)
- Net Weight: 0.45 kg (0.99 lbs)
- Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
- Surge Protection: ±6 kV
- PERFORMANCE
- Packet Buffer Memory: 4 Mbit
- Jumbo Frame: 15 KB
- Switching Capacity: 16 Gbps
- Packet Forwarding Rate: 11.9 Mpps
- MAC Address Table: 8K
- SOFTWARE FEATURES
- Quality of Service:
- - 802.1p DSCP QoS
- - 8 Priority Queues
- - Priority Schedule Mode
- - WRR (Weighted Round Robin)
- - Queue Weight Config
- - Bandwidth Control
- - Port-Based Rating Limit
- - Storm Control
- - Multiple Control Modes (kbps/pps)
- - Broadcast/Multicast/Unknown-Unicast Control
- L2 Features
- - Link Aggregation (Static Link Aggregation; Up to 2 aggregation groups and up to 4 ports per group)
- - Loopback Detection
- - Flow Control- 802.3x Flow Control
- - Mirroring (Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both)
- - Port Statistics (Port Mirror Status; Traffic Statistics)
- - 802.1ab LLDP
- L2 Multicast
- - IGMP Snooping
- - IGMP v1/v2/v3 Snooping
- - Fast Leave
- VLAN
- - MTU VLAN
- - Port-Based VLAN
- - 802.1Q Tag VLAN
- - Max 32 VLAN Groups
- - 4K VID
- Transmission Method:
- Store-And-Forward
- Management Features
- Omada App: Yes. Requires the use of Omada Controller.
- Centralized Management
- - Omada Cloud-Based Controller
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access: Yes. Requires the use of Omada Controller.
- Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
- Management Features
- - Web-based GUI
- - DHCP Client
- - Cable Diagnostics
- - Automatic Device Discovery
- - Batch Configuration
- - Batch Firmware Upgrading
- - Unified Configuration
- Warranty 3Years on part.
