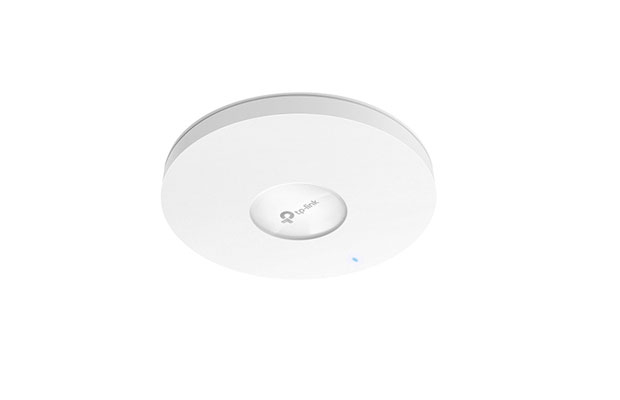

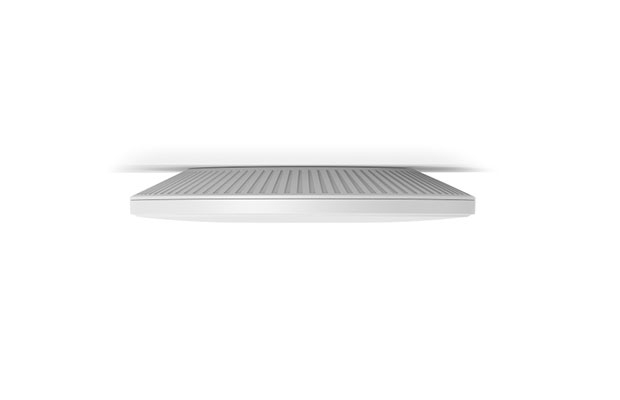

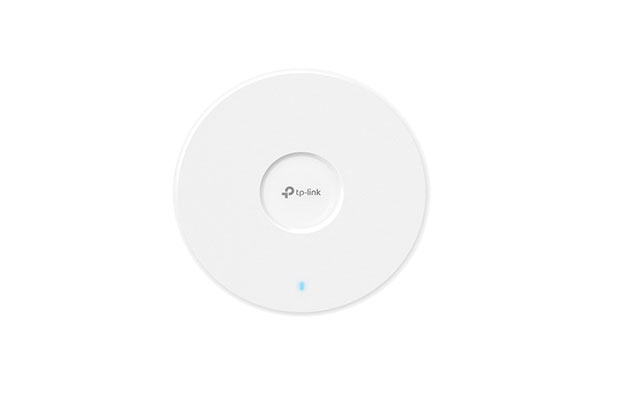

TP-Link EAP772 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
$329.00
- Part Number: TP-Link EAP772
- BE11000 Tri-Band Wi-Fi 7 (5765 Mbps on 6 GHz + 4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- A clear 6 GHz band brings cleaner and wider band resources.
- 1× 2.5GbE Port unlocks the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
- Warranty: 3Years on Part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TP-Link EAP772
- HARDWARE FEATURES
- Interface: 1× 2.5G Ethernet Port
- Button: Reset
- Power Supply: 802.3at PoE & 12V/2.5A DC
- Note: DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
- Max. Power Consumption: 25.44 W (For PoE); 22.57 W (For DC)
- Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna • 2.4 GHz: 2× 4.0 dBi
- • 5 GHz: 2× 5.0 dBi
- • 6 GHz: 2× 5.0 dBi
- Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2
- *Firmware update may be required.

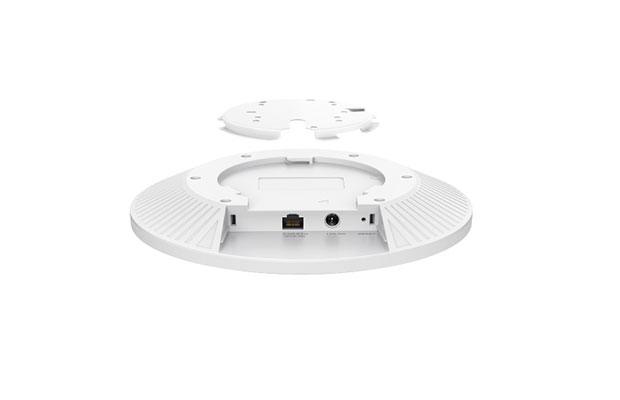

- Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)
- WIRELESS FEATURES
- Coverage: 140㎡(1500 ft²)§
- Concurrent Clients: 380+**
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency: 6 GHz, 5 GHz, and 2.4 GHz
- Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
- Wireless Functions:
- - MLO‡
- - 4K-QAM‡
- - Seamless Roaming(802.11k/v/r)
- - MU-MIMO‡
- - EHT320‡
- - Mesh△
- - BSS Coloring‡
- - OFDMA‡
- - Load Balance
- - Band Steering
- - Beamforming
- - Airtime Fairness
- - Multiple SSIDS:24(8 on each band)
- - Wireless Schedule
- - Reboot Schedule
- - QoS(WMM)
- - Rate Limit
- - Static IP/Dynamic IP
- - RADIUS Accounting
- - MAC Authentication
- Wireless Security:
- - Captive Portal Authentication△
- - Access Control
- - Maximum number of MAC Filter: 4,000
- - Wireless Isolation Between Clients
- - VLAN
- - Rogue AP Detection
- - WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
- < 25dBm （2.4GHz）
- < 25dBm （5GHz）
- < 23dBm （6GHz）
- Management Features
- Omada App: Yes
- Centralized Management:
- - Omada Cloud-Based Controller
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access: Yes. Require the use of an Omada controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Yes
- Web-based Management: Yes
- OTHERS
- Certification: CE, FCC, RoHS, IC
- Package Content:
- - EAP772
- - Installation Guide
- - Ceiling/Wall/Junction Box Mounting Kits
- Note: Power Adapter is NOT included.
- Environment:
- - Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
- - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- - Operating Humidity: 10%–90% non-condensing;
- - Storage Humidity: 5%–90% non-condensing;
- Warranty: 3Years on Part.
