TP-Link EAP723 BE5000 Ceiling-Mount Wi-Fi 7 Access Point
$175.00
- Part Number: TP-Link EAP723
- BE5000 Dual-Band Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1× 2.5GbE port unlocks the full potential of Wi-Fi 7.
- 240 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
- Warranty 3Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TP-Link EAP723
- HARDWARE FEATURES
- Interface: 1× 2.5G Ethernet Port

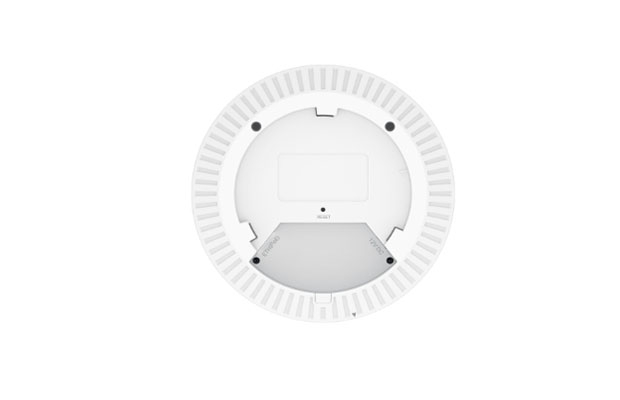

- Button: Reset
- Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
- Max. Power Consumption: 17.8 W (For PoE); 14.0 W (For DC)
- Dimensions ( W x D x H ): 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
- Antenna: 2.4 GHz: 2× 4.0 dBi & 5 GHz: 2× 5.0 dBi

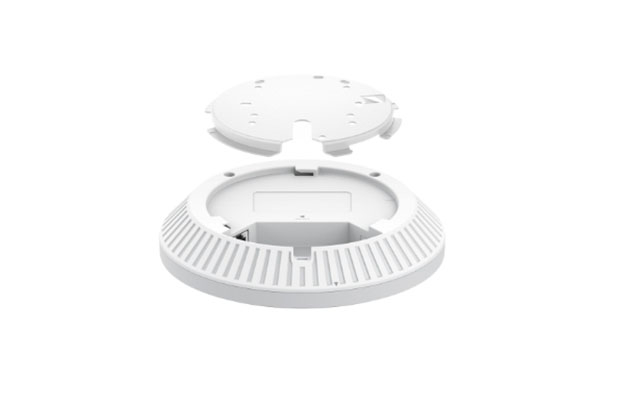

- Mounting: Ceiling / Wall Mounting (Kits Included)
- WIRELESS FEATURES
- Coverage: 140㎡(1500 ft²)***
- Concurrent Clients: 250+**
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
- Wireless Functions:
- - 4K-QAM‡
- - Seamless Roaming
- - MU-MIMO‡
- - EHT240‡
- - Mesh△
- - OFDMA‡
- - Load Balance
- - Band Steering
- - Beamforming
- - Airtime Fairness
- - Multiple SSIDS:16(8 on each band)
- - Wireless Schedule
- - Reboot Schedule
- - QoS(WMM)
- - Rate Limit
- - Static IP/Dynamic IP
- - RADIUS Accounting
- - MAC Authentication
- Wireless Security:
- - Captive Portal Authentication△
- - Access Control
- - Maximum number of MAC Filter: 4,000
- - Wireless Isolation Between Clients
- - VLAN
- - Rogue AP Detection
- - WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
- < 25 dBm (2.4GHz)
- < 25 dBm (5GHz, band 1&band 4)
- < 24 dBm (5GHz, band 2&band 3)
- Management Features
- Omada App: Yes
- Centralized Management:
- - Omada Cloud-Based Controller
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Yes
- Web-based Management: Yes
- OTHERS
- Certification: CE, FCC, RoHS, IC
- Package Content:
- - EAP723
- - Installation Guide
- - Ceiling/Wall Mounting Kit
- Environment:
- - Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
- - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- - Operating Humidity: 10%–90% non-condensing;
- - Storage Humidity: 5%–90% non-condensing;
- Warranty 3Years on part.
