TP-Link EAP720 Omada BE5000 4-Stream Ceiling Mount Dual-Band Wi-Fi 7 Access Point
$115.00
- Part Number: EAP720
- Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.
- Warranty: 3-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: EAP720
- HARDWARE FEATURES
- Interface: 1× 2.5G Ethernet Port
- Button: Reset
- Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Included)
- Max. Power Consumption: 17.83 W (For PoE); 13.99 W (For DC)
- Dimensions ( W x D x H ): 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
- Antenna: 2.4 GHz: 2× 4.0 dBi & 5 GHz: 2× 5.0 dBi

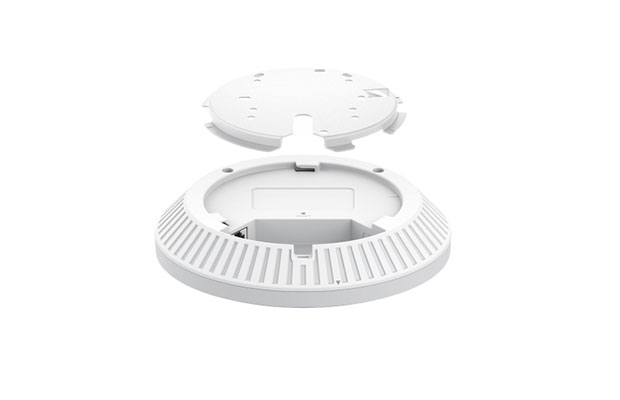

- Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)
- Management Features
- Omada App: Yes
- Centralized Management:
- - Omada Central (Cloud-Based)
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access: Yes. Require the use of Omada Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Yes
- Web-based Management: Yes
- WIRELESS FEATURES
- Coverage: 1500 ft² (140㎡)*
- Concurrent Clients: 250+**
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
- Wireless Functions:
- - MLO‡
- - 4K-QAM‡
- - Seamless Roaming
- - 240 MHz Bandwidth‡
- - Mesh△
- - OFDMA‡
- - Load Balance
- - Band Steering
- - Beamforming
- - Airtime Fairness
- - Multiple SSIDS:16(8 on each band)
- - Wireless Schedule
- - Reboot Schedule
- - QoS(WMM)
- - Rate Limit
- - Static IP/Dynamic IP
- - RADIUS Accounting
- - MAC Authentication
- Wireless Security:
- - Captive Portal Authentication△
- - Access Control
- - Maximum number of MAC Filter: 4,000
- - Wireless Isolation Between Clients
- - VLAN
- - Rogue AP Detection
- - WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
- - < 25 dBm (2.4 GHz)
- - < 25 dBm (5 GHz, UNII-1&UNII-4)
- - < 24 dBm (5 GHz, UNII-2&UNII-3)
- OTHERS
- Certification: CE, FCC, RoHS, IC
- Package Content:
- - Omada Wi-Fi 7 Ceiling Mount Access Point EAP720
- - Installation Guide
- - Ceiling/Wall/Juntion Box Mounting Kit
- - Power Adapter
- Environment:
- - Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
- - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- - Operating Humidity: 10%–90% non-condensing;
- - Storage Humidity: 5%–90% non-condensing;
- Warranty: 3-years on part.
