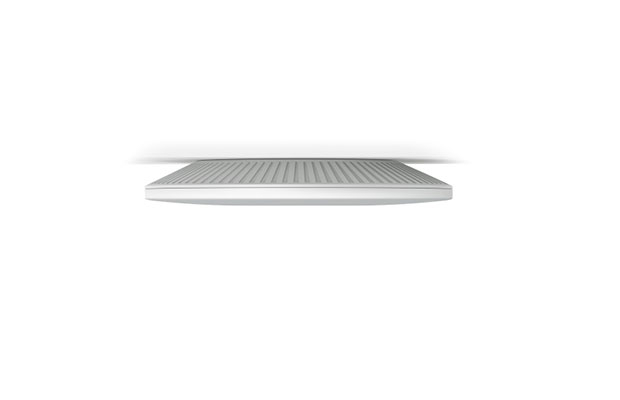

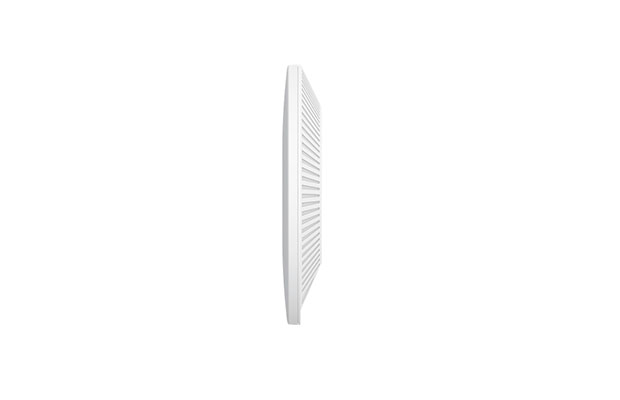

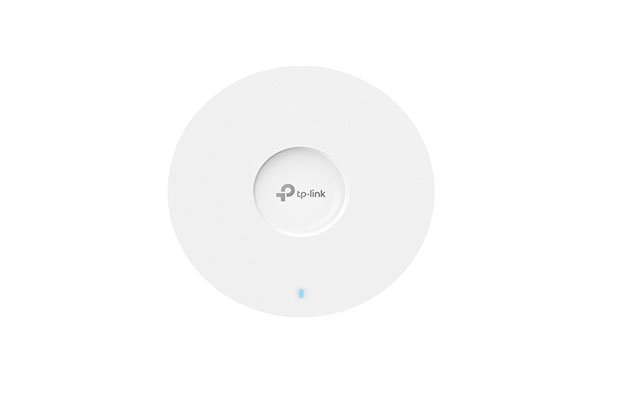

TP-Link EAP683 UR AX6000 Ceiling Mount WiFi 6 Access Point
$265.00
- Part Number: TP-Link EAP683 UR
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
- Warranty: 3Years on Part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TP-Link EAP683 UR
- HARDWARE FEATURES
- Interface: 1× 2.5 Gigabit PoE+ Port
- Button: Reset
- Power Supply: 802.3at PoE & 12 V / 2 A DC
- Note：Power adapter is not included.
- Max. Power Consumption: EU: 20.43W & US: 23.69W
- Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna: Internal Omni
- - 2.4 GHz: 4× 4 dBi
- - 5 GHz: 4× 5 dBi
- Bluetooth: Yes

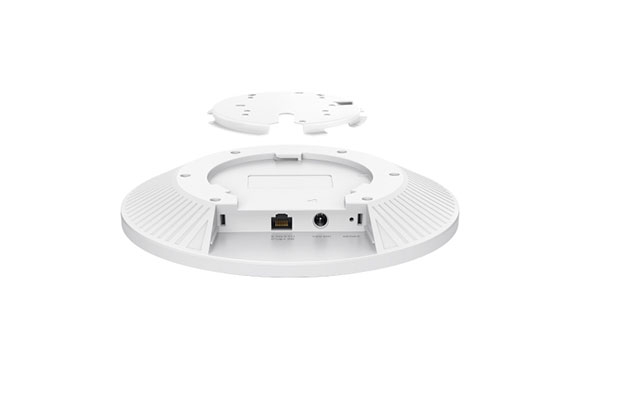

- Mounting: Ceiling /Wall Mounting (Kits included)
- WIRELESS FEATURES
- Coverage: 185㎡(2000ft²)***
- Concurrent Clients: 510+**
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 5 GHz: Up to 4804 Mbps & 2.4 GHz: Up to 1148 Mbps
- Wireless Functions:
- - 1024-QAM
- - 4× Longer OFDM Symbol
- - OFDMA
- - Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- - Enable/Disable Wireless Radio
- - Automatic Channel Assignment
- - Transmit Power Control (Adjust Transmit Power on dBm)
- - QoS(WMM)
- - MU-MIMO
- - HE160 (160 MHz Bandwidth)‡
- - Seamless Roaming §
- - Omada Mesh§
- - Band Steering
- - Load Balance
- - Airtime Fairness
- - Beamforming
- - Rate Limit
- - Reboot Schedule
- - Wireless Schedule
- - Wireless Statistics based on SSID/AP/Client
- Wireless Security:
- - Captive Portal Authentication§
- - Access Control
- - Wireless Mac Address Filtering
- - Wireless Isolation Between Clients
- - SSID to VLAN Mapping
- - Rogue AP Detection
- - 802.1X Support
- - WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power : CE: <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, band1 & band2, EIRP)
- <28 dBm(5 GHz, band3, EIRP)
- <FCC: <26 dBm (2.4 GHz)
- <26 dBm (5 GHz)
- Management Features
- Omada App: Yes
- Centralized Management
- - Omada Hardware Controller (OC300)
- - Omada Hardware Controller (OC200)
- - Omada Software Controller
- - Omada Cloud-Based Controller
- Cloud Access: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.
- OTHERS
- Certification: CE,FCC,RoHS
- Package Content:
- - EAP683 UR
- - Ceiling/Wall Mounting Kits
- - Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment:
- - Operating Temperature: 0–40 ℃ (32–104 ℉)
- - Storage Temperature: -40–70 ℃ (-40–158 ℉)
- - Operating Humidity: 10–90% RH non-condensing
- - Storage Humidity: 5–90% RH non-condensing
- Warranty: 3Years on Part.
