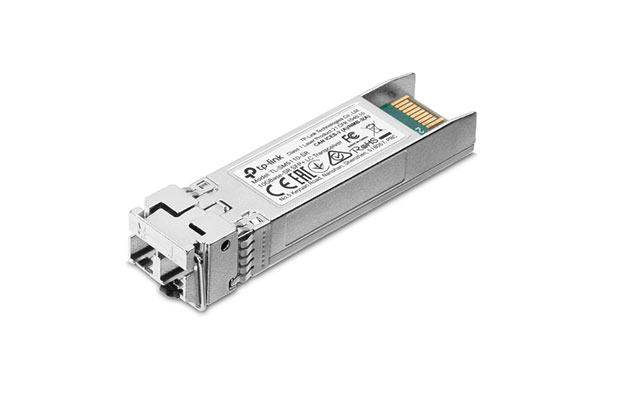

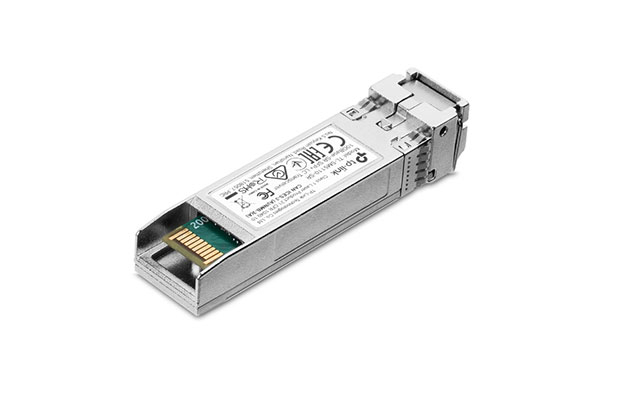

TP-Link TL-SM5110-SR 10GBase-SR SFP+ LC Transceiver (up to 300m or 33m)
$55.00
- Part Number: TL-SM5110-SR
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
- Warranty: 3-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-SM5110-SR
- PACKAGE CONTENTS
- Package Contents:
- - 10G SFP+ Module TL-SM5110-SR
- - Installation Guide
- HARDWARE FEATURES
- DDM: Yes
- SFP-MSA: Yes
- Hot Swappable: Yes
- MEDIA CONVERTER & MODULE
- Dimensions (W*D*H): 2.4*0.6*0.5 in (61.3*14.5*12.2 mm)
- Transceiver
- Standards and Protocols: IEEE 802.3ae, TCP/IP, SFF-8472
- Wave Length: 850nm
- Power Supply: 3.3V
- Fiber Type: 50/125um or 62.5/125um Multi-mode

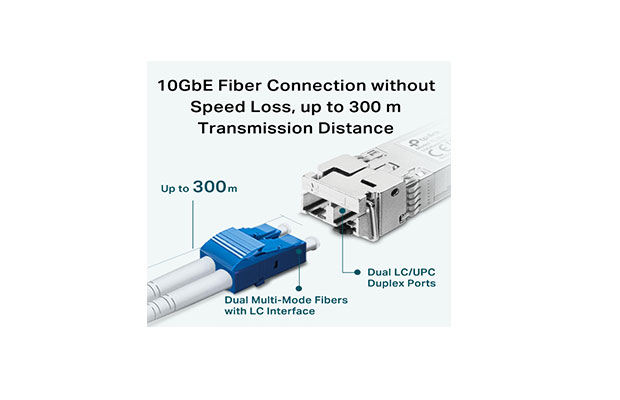

- Max. Cable Length: 300m (OM3)
- Data Rate: 10Gbps
- Port Type: LC/UPC
- Safety & Emission: FCC, CE
- Environment:
- Operating Temperature: 0–70 ℃ (32–158 ℉)
- Storage Temperature: -40–80 ℃ (-40–176 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
- Warranty: 3-years on part.
